Water Pump Pulley

1. Remove the V-belts. Ref. to MECHANICAL (H4DO (EXCEPT FOR HEV))>V-BELT>REMOVAL>HYBRID MODEL>V-BELT .

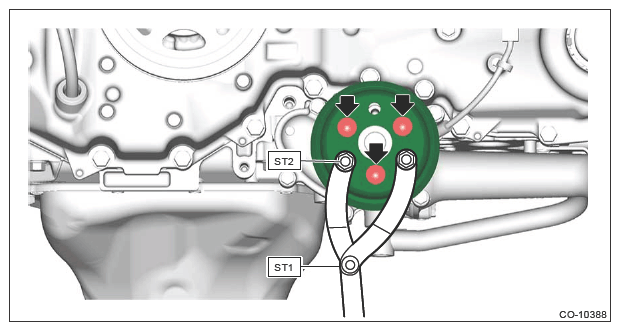

2. Using the ST1 and ST2, remove the water pump pulley.

Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA020)

Courtesy of SUBARU OF AMERICA, INC.
