Filler Neck

WARNING: This page is about a different variant/trim than selected.
  1. Drain engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>ENGINE SIDE .
  2. Remove the collector cover. Ref. to INTAKE (INDUCTION) (H4DO (EXCEPT FOR HEV))>COLLECTOR COVER>REMOVAL .

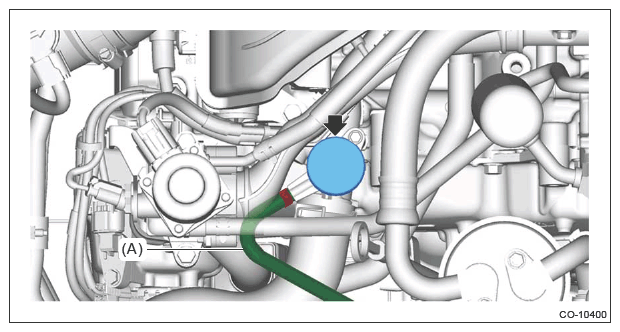

  3. Disconnect the over flow hose (A), and remove the water tank pipe cap.
    G13231226Courtesy of SUBARU OF AMERICA, INC.

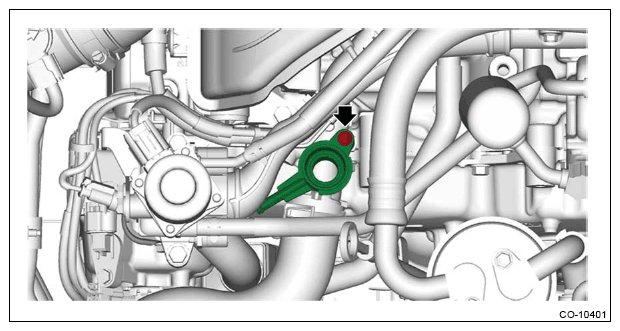

  4. Remove the filler neck.
G13231227Courtesy of SUBARU OF AMERICA, INC.
