Section 12 (Engine Cooling System (HEV)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT>ENGINE SIDE .
  3. Remove the front exhaust pipe. Ref. to EXHAUST (H4DO (EXCEPT FOR HEV))>FRONT EXHAUST PIPE>REMOVAL .

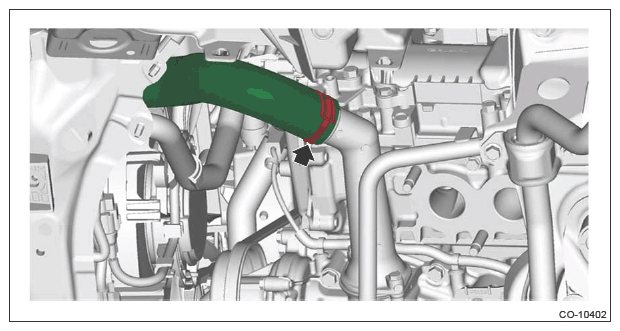

  4. Disconnect radiator outlet hose.
    G13231241Courtesy of SUBARU OF AMERICA, INC.

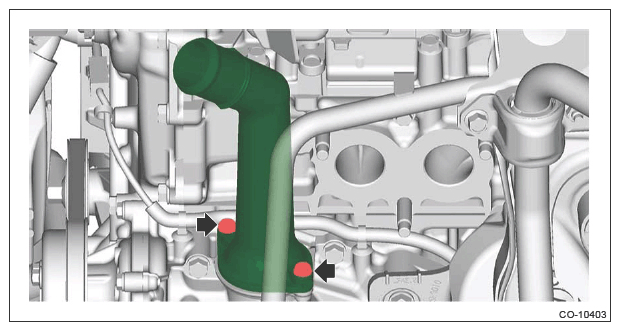

  5. Remove the thermostat cover, and then remove the thermostat.
    G13231242Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the gasket from thermostat.
