Radiator & Radiator Fan

WARNING: This page is about a different variant/trim than selected.

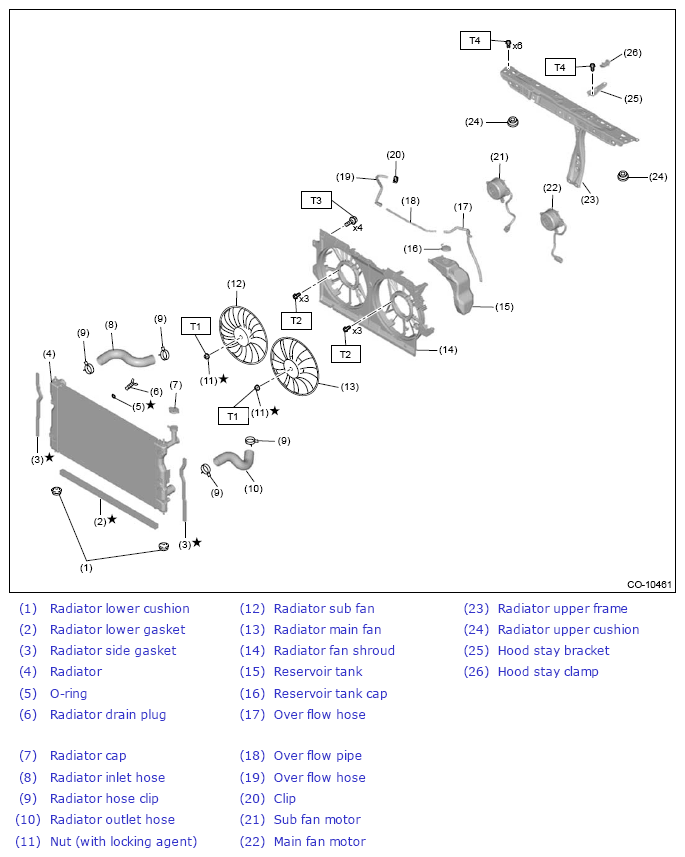

Fig 1: Radiator & Radiator Fan Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.43 (0.35, 2.53)

T2: 4.41 (0.45, 3.25)

T3: 7.5 (0.8, 5.5)

T4: 18 (1.8, 13.3)
