Mode Door Actuator: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION: Before handling the airbag system components, always refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the heat pump Control Module. Ref. to AIR CONDITIONER (HEV)>CONTROL UNIT>REMOVAL .
  4. Remove the motor - actuator mode.
    1. Disconnect the connector.
    2. Remove the screws and detach the motor - actuator mode.

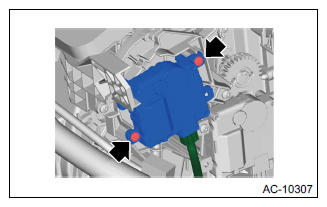

      G11245712Courtesy of SUBARU OF AMERICA, INC.
