Heater Duct: Removal: Front

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
    NOTE:
    • Release the shift lock and shift the select lever to the "N" position.
    • For power seat models, remove the console box before removing the battery ground terminal.
  2. Remove the cover assembly - front and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  3. Remove the cover assembly - instrument panel LWR driver INN. (When removing LH side) Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  4. Remove the pocket assembly and the back panel - pocket. (When removing RH side) Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  5. Remove the duct - rear heater front.
    1. Remove the slide lock.
    2. Release the claws, and remove the duct - rear heater front.

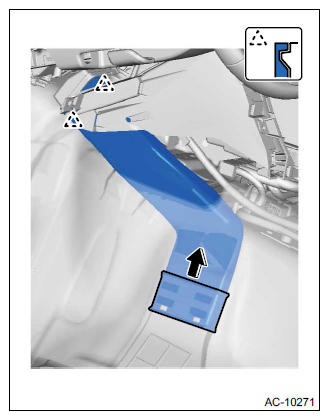

      G11245722Courtesy of SUBARU OF AMERICA, INC.
