RH Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIORTRIM>GLOVE BOX>REMOVAL .
  3. Remove the duct - foot passenger.

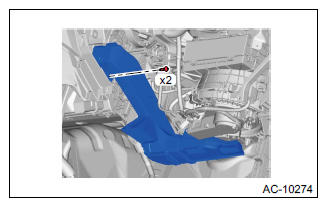

    1. Remove the screws and remove the duct - foot passenger.
      G11245725Courtesy of SUBARU OF AMERICA, INC.
