Heater Cooling Unit

WARNING: This page is about a different variant/trim than selected.

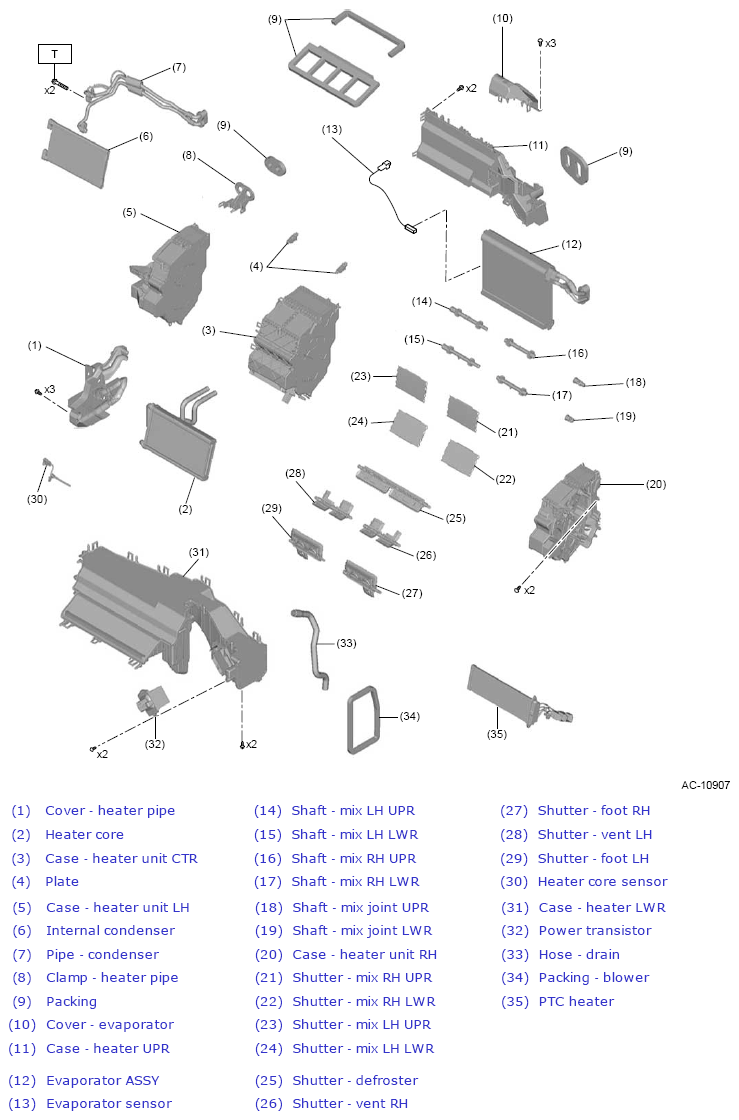

Fig 1: Heater Cooling Unit Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

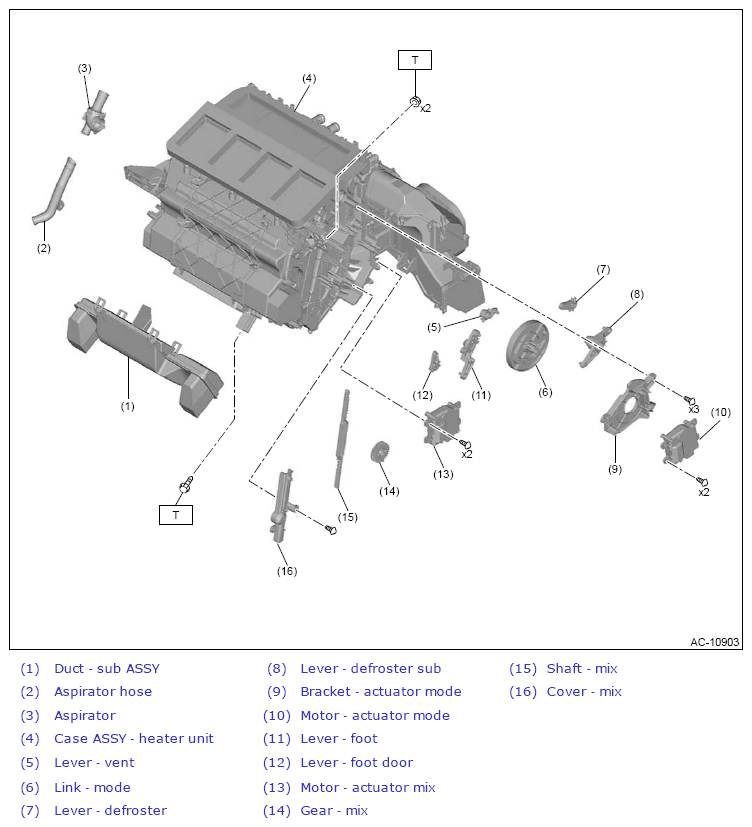

Fig 2: Heater Cooling Unit Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
