Expansion Valve & Solenoid Valve

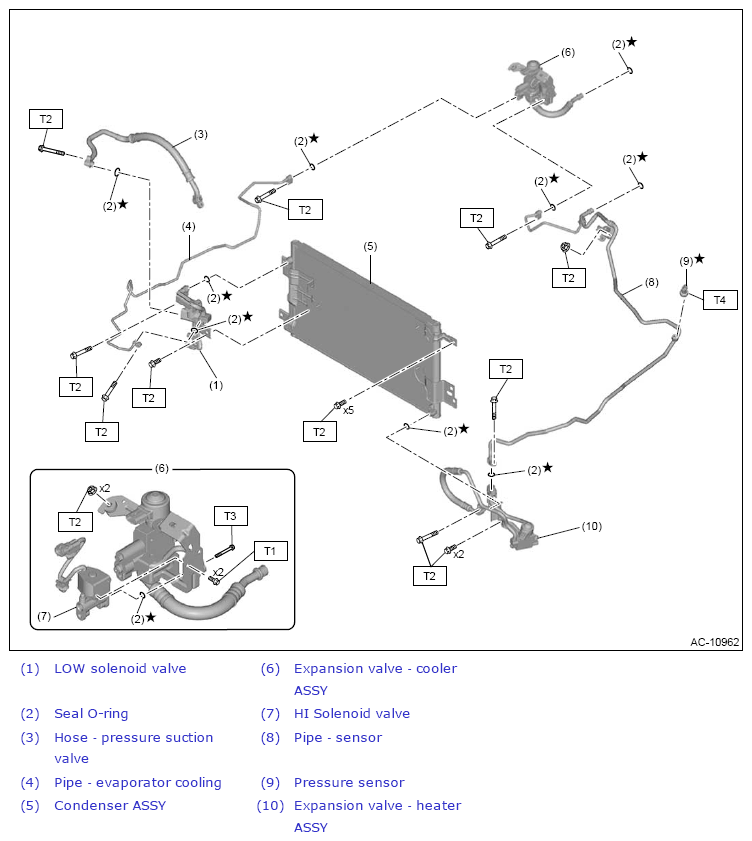

Fig 1: Expansion Valve & Solenoid Valve Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 7.5 (0.8, 5.5)

T3: 9.8 (1, 7.2)

T4: 10.8 (1.1, 8)
