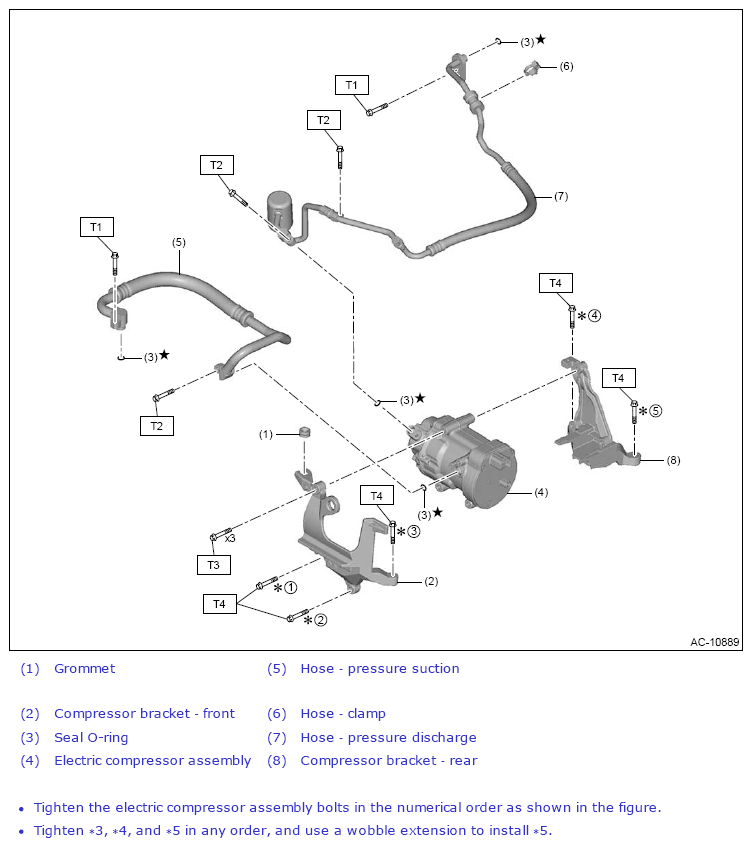

Components With Torque Specifications: Compressor
WARNING: This page is about a different variant/trim than selected.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N-m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 10 (1, 7.4)
T3: 26.5 (2.7, 19.5)
T4: 36 (3.7, 26.6)
