Components With Torque Specifications: Accumulator

WARNING: This page is about a different variant/trim than selected.

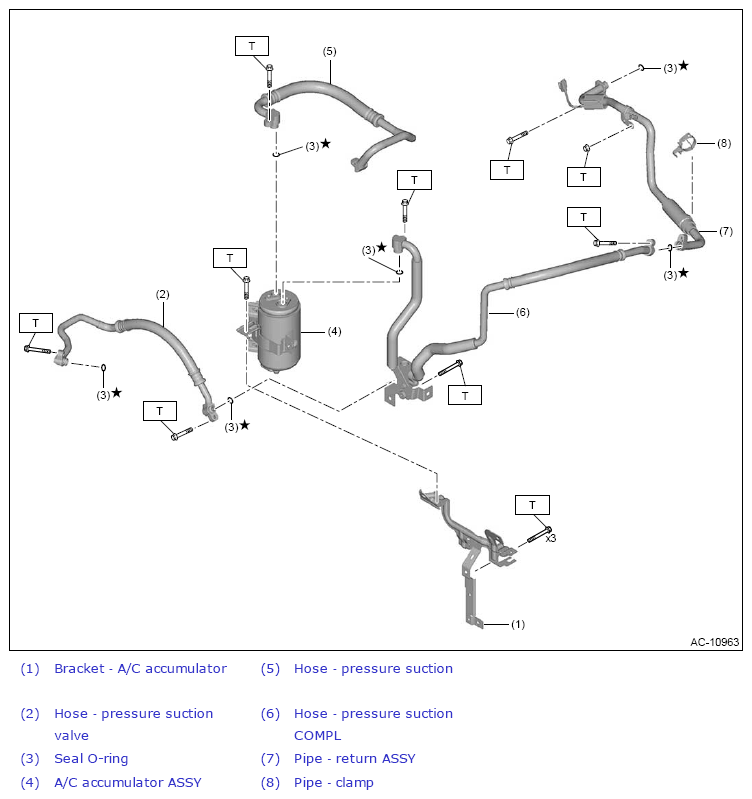

Fig 1: Accumulator Components (With Torque Specifications)
G13605094Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N-m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
