FRESH/RECIRC Door Actuator: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the heat pump Control Module. Ref. to AIR CONDITIONER (HEV)>CONTROL UNIT>REMOVAL .
  4. Remove the motor - actuator intake.
    1. Disconnect the connector.
    2. Remove the screws, and remove the motor - actuator intake.

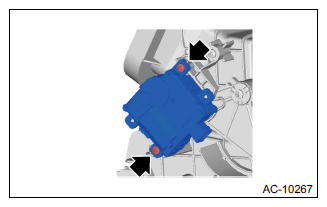

      G11245709Courtesy of SUBARU OF AMERICA, INC.
