Blower Motor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the pocket assembly and the back panel - pocket. Ref. to EXTERIOR/INTERIOR TRIM>GLOVE BOX>REMOVAL .
  3. Remove the duct - foot passenger. Ref. to AIR CONDITIONER (HEV)>HEATER DUCT>REMOVAL>FOOT .

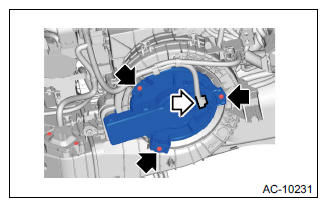

  4. Remove the blower motor assembly.
    1. Disconnect the connector.
    2. Remove the screws and detach the blower motor assembly.
    G11245655Courtesy of SUBARU OF AMERICA, INC.
