Blower Motor Unit Assembly: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  • Be careful not to damage the airbag system harness when servicing the instrument panel. Damage may cause the system to malfunction.
  • Seal the engaging parts of the disconnected hose and pipe with plugs or vinyl tape to prevent foreign matter from entering.
  1. Using the refrigerant recovery system, discharge refrigerant. Ref. to AIR CONDITIONER (HEV)>REFRIGERANT RECOVERY PROCEDURE>PROCEDURE .
  2. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  3. Drain engine coolant. (Engine side) Ref. to COOLING (H4DO (HEV))>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  4. Remove the heater and cooling unit assembly. Ref. to AIR CONDITIONER (HEV)>HEATER AND COOLING UNIT>REMOVAL .
  5. Remove the blower motor unit assembly.

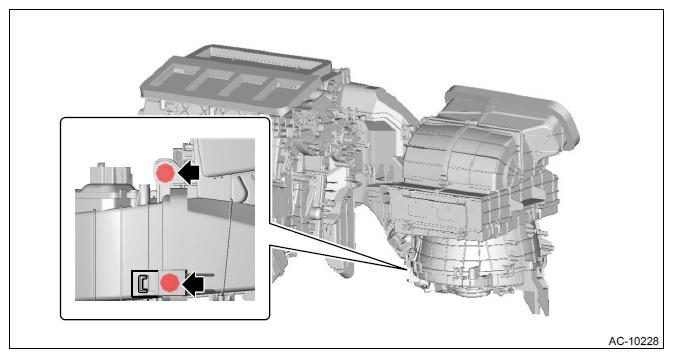

    1. Release the claws and remove the screws.
      G11245653Courtesy of SUBARU OF AMERICA, INC.

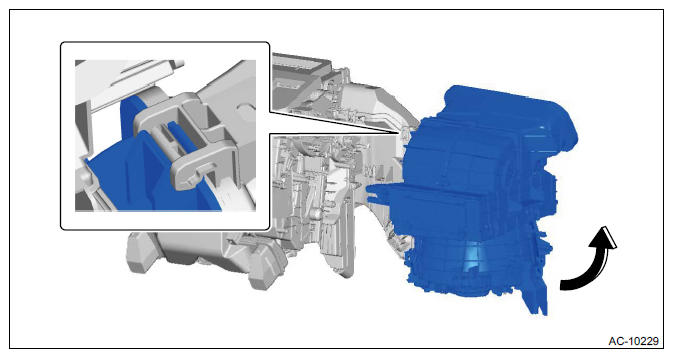

    2. Release the guide, and remove the blower motor unit assembly as shown in the figure.
      G11245654Courtesy of SUBARU OF AMERICA, INC.
