Section 1 (Brake Control System (Diagnostics) (HEV)): Electrical Component Location: Location

WARNING: This page is about a different variant/trim than selected.

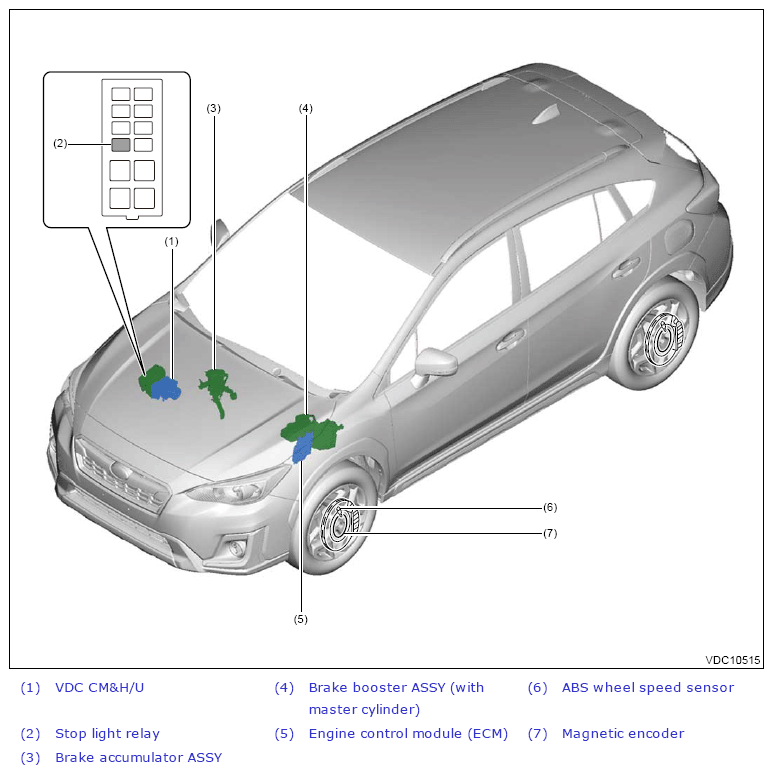

G13616211Courtesy of SUBARU OF AMERICA, INC.

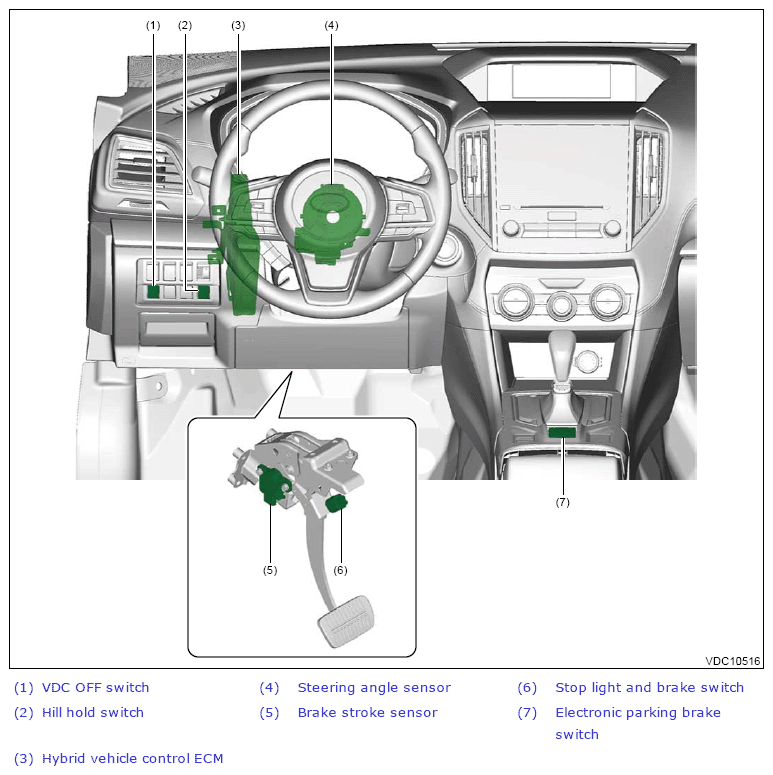

G13616212Courtesy of SUBARU OF AMERICA, INC.
