Communication For Initializing Impossible

Detecting condition:  Defective harness connector

Trouble symptom:  Communication is impossible between VDC and Subaru Select Monitor.

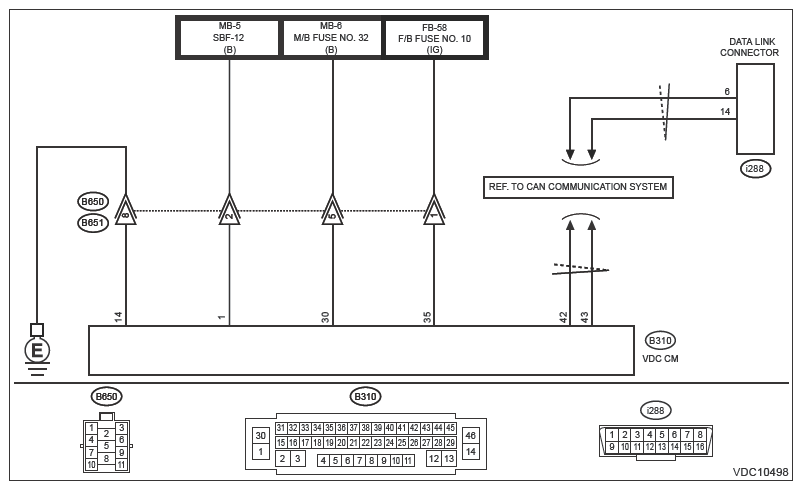

Wiring diagram:  Vehicle dynamics control system Ref. to WIRING SYSTEM (CROSSTREK MODEL (HEV))>VEHICLE DYNAMICS CONTROL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

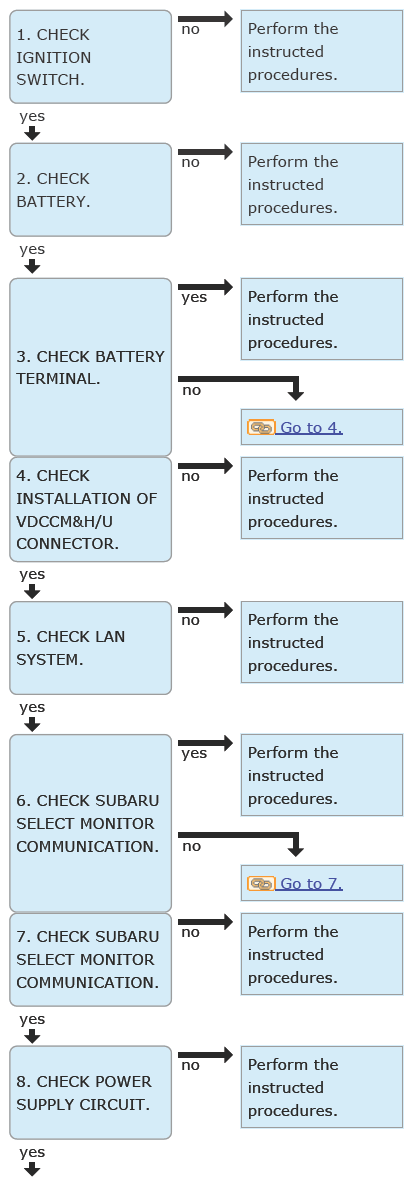

1. CHECK IGNITION SWITCH  .

   Is the ignition switch ON?

   Yes  : Go to  2.

   No  : Turn the ignition switch to ON, and select the [Brake Control] using the Subaru Select Monitor.

2. CHECK BATTERY  .
   1. Turn the ignition switch to OFF.
   2. Measure the battery voltage.

      Is the voltage 11 V or more?

      Yes  : Go to  3.

      No  : Charge or replace the battery.

3. CHECK BATTERY TERMINAL  .

   Is there poor contact at battery terminal?

   Yes  : Replace or tighten the battery terminal.

   No  : Go to  4.

4. CHECK INSTALLATION OF VDC CONTROL MODULE & H/U CONNECTOR  .

   Turn the ignition switch to OFF.

   Is the VDC Control Module & H/U connector inserted into VDC Control Module & H/U until the clamp locks onto it?

   Yes  : Go to  5.

   No  : Insert VDC Control Module & H/U connector into VDC Control Module & H/U.

5. CHECK LAN SYSTEM  .

   Check the LAN system. Ref. to LAN SYSTEM (DIAGNOSTIC) (HEV)>BASIC DIAGNOSTIC PROCEDURE .

   Is the check result OK?

   Yes  : Go to  6.

   No  : Perform the diagnosis for LAN system.

6. CHECK SUBARU SELECT MONITOR COMMUNICATION  .
   1. Turn the ignition switch to ON.
   2. Check whether communication to VDC system can be executed normally.

      Is the [Select Function] screen displayed?

      Yes  : Check the DTC in VDC system. Ref. to BRAKE CONTROL (DIAGNOSTICS) (HEV)>DIAGNOSTIC TROUBLE CODE (DTC) .

      No  : Go to  7.

7. CHECK SUBARU SELECT MONITOR COMMUNICATION  .

   Connect the Subaru Select Monitor to another vehicle to check whether the communication for initializing can be executed normally.

   Does the Subaru Select Monitor communicate normally?

   Yes  : Go to  8.

   No  : Repair or replace the Subaru Select Monitor.

8. CHECK POWER SUPPLY CIRCUIT  .
   1. Turn the ignition switch to ON. (Engine OFF)
   2. Measure the ignition power supply voltage between VDC Control Module & H/U connector and chassis ground.

      Connector & terminal

      (B310) No. 1 (+) - Chassis ground (-):

      (B310) No. 30 (+) - Chassis ground (-):

      (B310) No. 35 (+) - Chassis ground (-):

      Is the voltage 10 - 15 V?

      Yes  : Go to  9.

      No  : Repair open circuit in harness between VDC Control Module & H/U and battery.

9. CHECK HARNESS CONNECTOR BETWEEN VDC CONTROL MODULE & H/U AND CHASSIS GROUND  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from the VDC Control Module & H/U.
   3. Measure the resistance of harness between VDC Control Module & H/U connector and chassis ground.

      Connector & terminal

      (B310) No. 14 - Chassis ground:

      Is the resistance less than 10 Ω?

      Yes  : Go to  10.

      No  : Repair the open circuit of VDC Control Module & H/U ground circuit and poor contact of connector.

10. CHECK POOR CONTACT OF CONNECTOR  .

    Is there poor contact of control module power supply, ground circuit and data link connector?

    Yes  : Repair the connector.

    No  : Replace the VDC Control Module & H/U. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U) .
