Front Differential

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

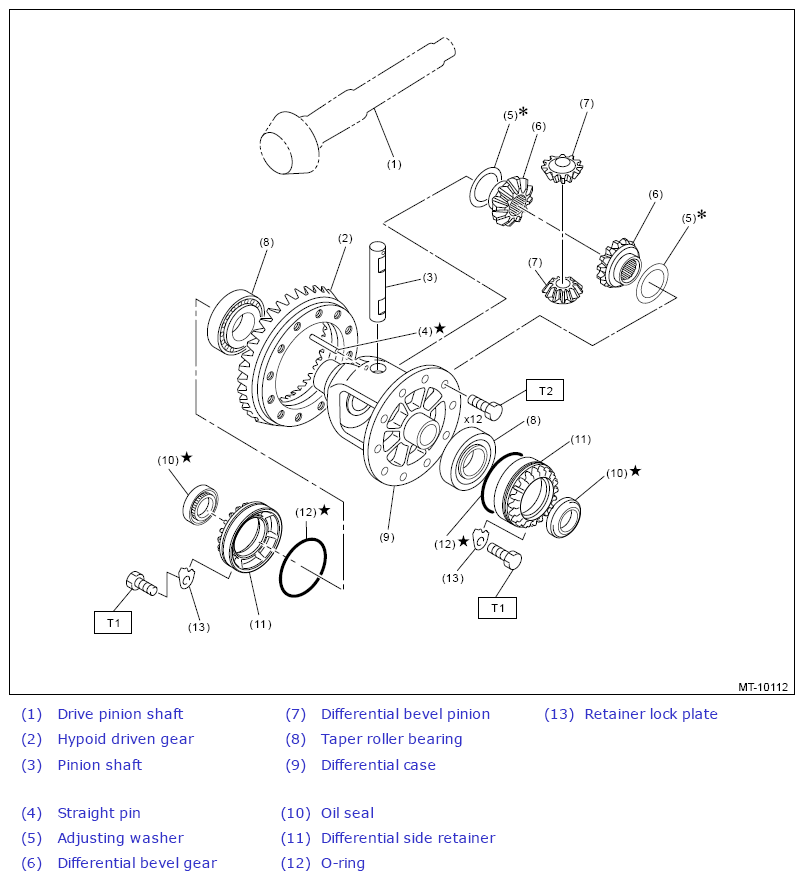

Fig 1: Exploded View Of Front Differential Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 62 (6.3, 45.7)
