Front Differential Assembly: Inspection: Notes
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

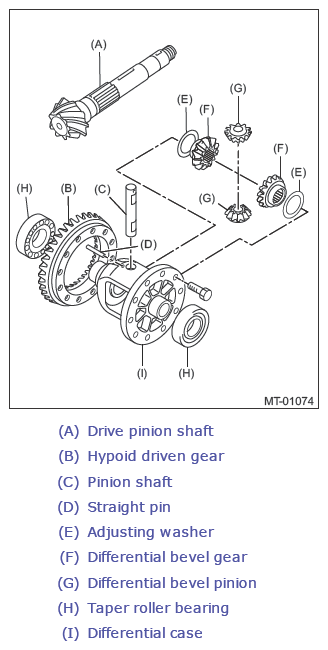

Repair or replace the differential gear in the following cases:
- When the hypoid driven gear and drive pinion shaft tooth surfaces are damaged, excessively worn, or seized.
- When the roller bearing on the drive pinion shaft has a worn or damaged roller path.
- When there is damage, wear or seizure of the differential bevel pinion, differential bevel gear, adjusting washer, pinion shaft or straight pin.
- When the differential case sliding surfaces are worn or damaged.
