Hypoid Driven Gear Backlash
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Using the ST, adjust by turning the differential side retainer on the right side.
Preparation tool:
ST: WRENCH COMPL RETAINER (18658AA021)
 Courtesy of SUBARU OF AMERICA, INC.
|
NOTE:

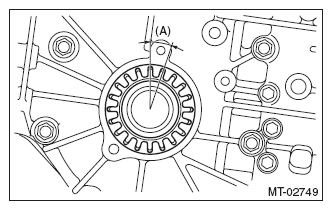

Each time the side retainer rotates by one notch (A), the backlash changes by 0.05 mm (0.020 in).
 Courtesy of SUBARU OF AMERICA, INC.
|
