Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from 12V engine restart battery sensor. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the clip from the air intake boot, and loosen the clamp.
    G11252776Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G11252777Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the transmission radio ground terminal.
    G11255509Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air breather hose together with the bracket.
    G11255511Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the pitching stopper.
    G11255512Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the transmission case cover (small).
    G11255523Courtesy of SUBARU OF AMERICA, INC.

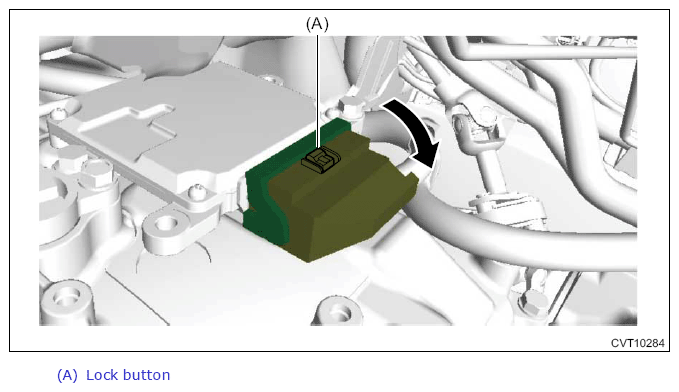

  8. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G13603596Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the TCM.
    G11255705Courtesy of SUBARU OF AMERICA, INC.
