Transmission Case: Disassembly

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil stopper plate.
    G10218771Courtesy of SUBARU OF AMERICA, INC.

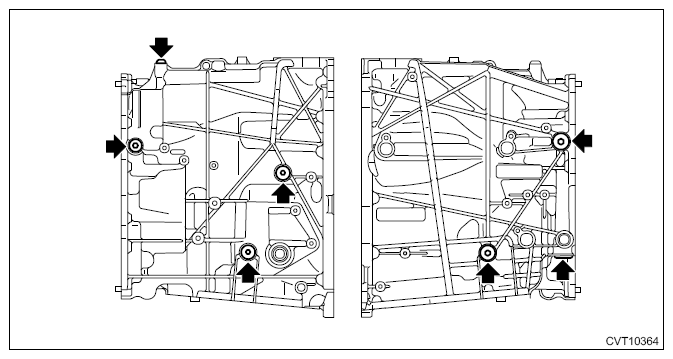

  2. Remove all plugs from the transmission case.
    G11255820Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil seal using a screwdriver wrapped with cloth etc.
    G10218773Courtesy of SUBARU OF AMERICA, INC.

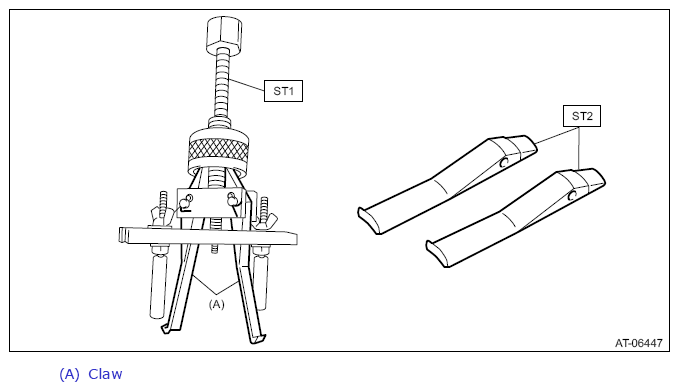

  4. Remove the ball bearing of the secondary pulley using the ST1 and ST2.
    1. Remove the claw of ST1, and attach the claw of ST2.

      Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G13603715Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the ball bearing of the secondary pulley using the ST1 and ST2.

      Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

    G11255823Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the oil guide.
    G08317971Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the roller bearing of the reduction driven gear.
    G11255825Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the thrust bearing.
    G11255826Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the CVTF filter cover and gasket.
    G08317973Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the CVTF filter.
    G08317974Courtesy of SUBARU OF AMERICA, INC.
