Transfer Clutch: Disassembly

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

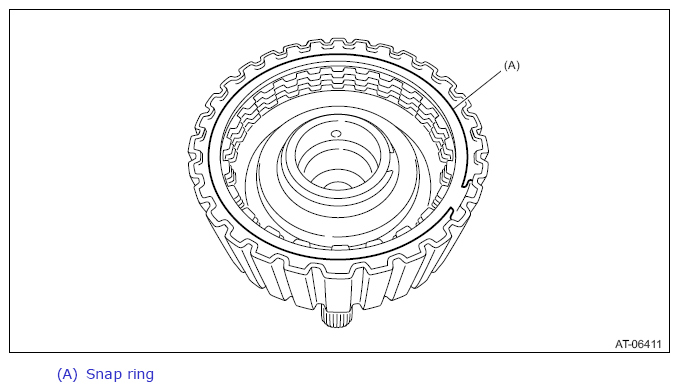

  1. Remove the snap ring, and then remove the pressure plate, drive plate and driven plate.
    G13603653Courtesy of SUBARU OF AMERICA, INC.

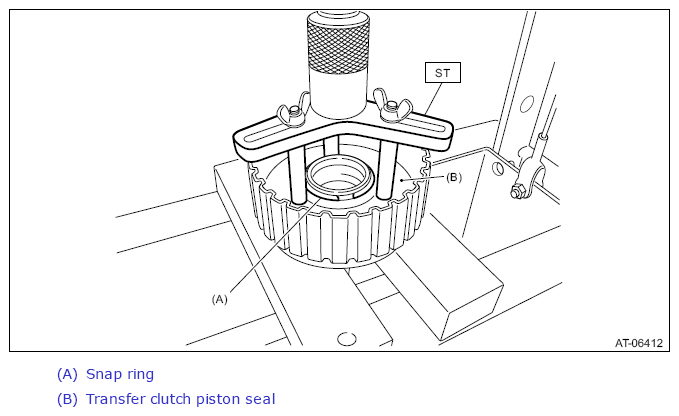

  2. Using the ST, compress the return spring with a press and remove the snap ring.

    Preparation tool:

    ST: COMPRESSOR SPECIAL TOOL (18762AA001)

    G13603654Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the transfer clutch piston seal.
  4. Remove the return spring.
    G08317908Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.
    NOTE: Plug the holes through which the compressed air is not blown.
    G08317909Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ball bearing using the ST1 and ST2.

    Preparation tool:

    ST1: BEARING REMOVER (18767AA010)

    ST2: REMOVER (18723AA000)

    G08317910Courtesy of SUBARU OF AMERICA, INC.
