Transfer Clutch Pressure Test: Inspection

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle.
Disconnect the rear exhaust pipe from the front exhaust pipe.

Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust cover.

Courtesy of SUBARU OF AMERICA, INC.

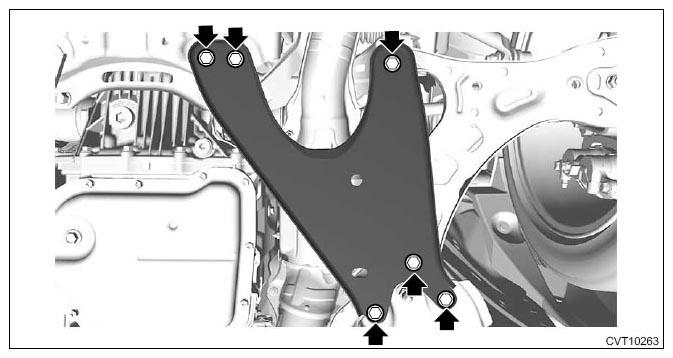

Remove the crossmember support - rear LH.

Courtesy of SUBARU OF AMERICA, INC.
Set the transmission jack under the transmission.

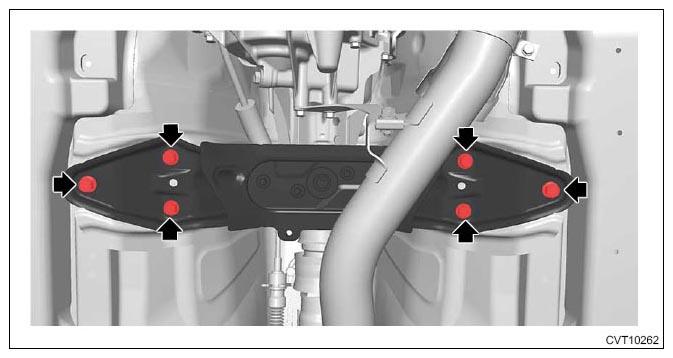

Remove the mounting bolt of rear crossmember.

Courtesy of SUBARU OF AMERICA, INC.

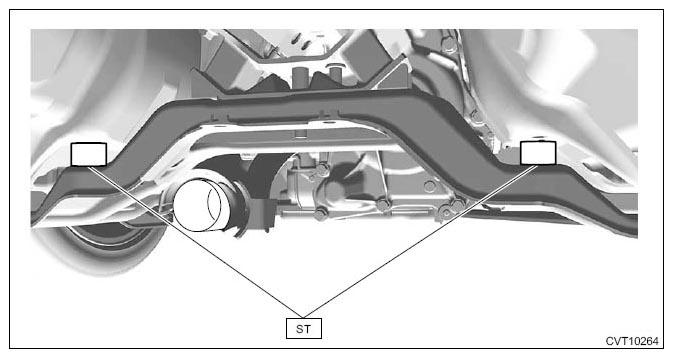

Lower the rear side of the transmission, and set the ST at four positions in the rear crossmember.
Preparation tool:

ST: ADAPTER (18362AA020)

Courtesy of SUBARU OF AMERICA, INC.

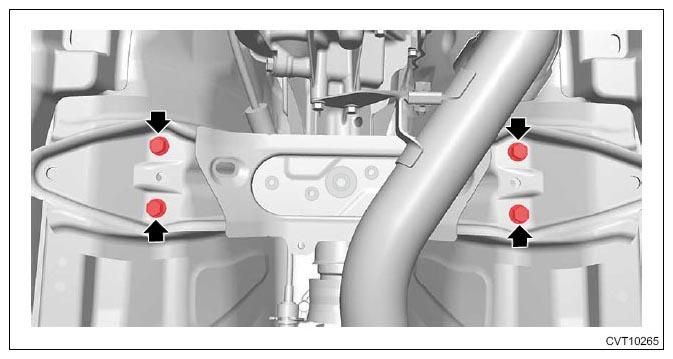

Install the rear crossmember with M10 x 30 mm bolts.
CAUTION: Be careful not to use longer bolts than the specified length. Those bolts may interfere with the floor panel.

Part No. (reference) 10510307

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the transfer clutch pressure test plug.
Preparation tool:

ST: SOCKET (18270AA040)

Courtesy of SUBARU OF AMERICA, INC.

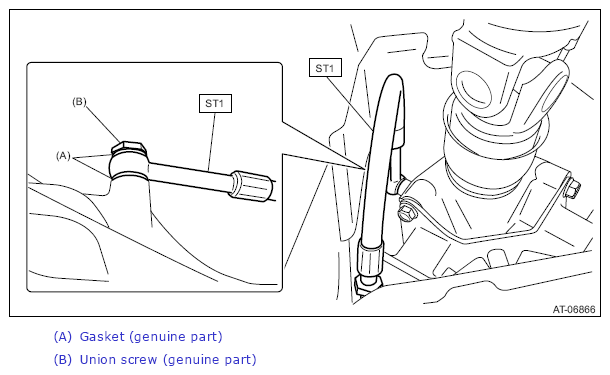

Set the ST1 and ST2 to the transmission.
NOTE:
- Use ST1 with genuine union screw (Part No. 801914010) and gasket (Part No. 803914060) attached.
- Use the ST2 with genuine O-ring (part No. 806908150) attached.
Preparation tool:

ST1: ADAPTER PRESSURE GAUGE (18681AA050)

ST2: OIL PRESSURE GAUGE ASSY (498575400)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Temporarily tighten the front exhaust pipe and rear exhaust pipe.

Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.

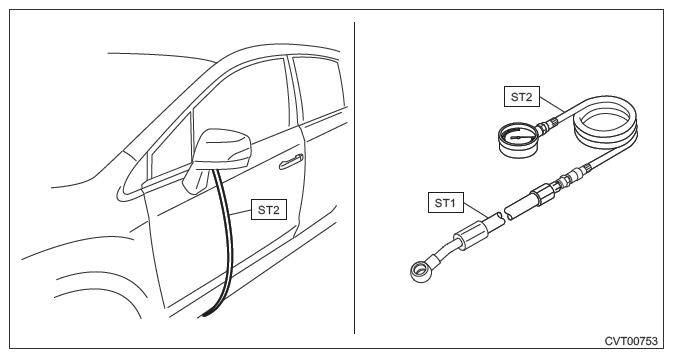

Connect the Subaru Select Monitor and read the current data.

Check the transfer clutch pressure as in secondary pressure (line pressure) test. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>SECONDARY PRESSURE (LINE PRESSURE) TEST .

NOTE:

Use Subaru Select Monitor for switching to FWD mode. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AWD ON/OFF SWITCHING MODE .
If no oil pressure is produced, if it does not change in AWD mode or if oil pressure is produced in FWD mode, there may be a problem in the control valve body.

Range position	ON Duty ratio (%)	Accelerator pedal opening angle (%)	Standard transfer clutch pressure kPa (kgf/cm² , psi)
Range position	ON Duty ratio (%)	Accelerator pedal opening angle (%)	AWD mode	FWD mode
D	95 - 100	Fully opened (100)	1, 000 - 1, 200 (10.2 - 12.2, 145 - 174)	-
	60	Adjust ON Duty ratio to 60%.	400 - 700 (4.1 - 7.1, 58 - 102)	-
	0	Fully closed (0)	-	0 (0, 0)
N or P	0	Fully closed (0)	0	-

Lift up the vehicle.
Remove the ST.

Install the test plug using ST1 and ST2.

NOTE:

Use new O-rings.
Apply CVTF to the O-rings.
Tighten the test plug while directly aligning ST2 and torque wrench.

Preparation tool:

ST1: SOCKET (18270AA040)

ST2: SPECIAL TOOL CONDENSER (73099SG000)

Tightening torque:

Calculation formula

T = L/(100 mm (3.94 in) + L) x 22 N.m (2.2 kgf-m, 16.2 ft-lb)

T: Tightening torque
L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

Set the transmission jack under the transmission.
Remove the ST (ADAPTER) and M10 x 30 mm bolts from the rear crossmember.
Raise the transmission assembly, and install the rear crossmember.
Tightening torque:

75 N.m (7.6 kgf-m, 55.3 ft-lb)
Install the center exhaust cover.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the rear exhaust pipe to the front exhaust pipe.
NOTE: Use a new gasket.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the crossmember support - rear LH.
Tightening torque:

70 N.m (7.1 kgf-m, 51.6 ft-lb)
Lower the vehicle.
