Drive Sprocket
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the snap ring.
 Courtesy of SUBARU OF AMERICA, INC.
|

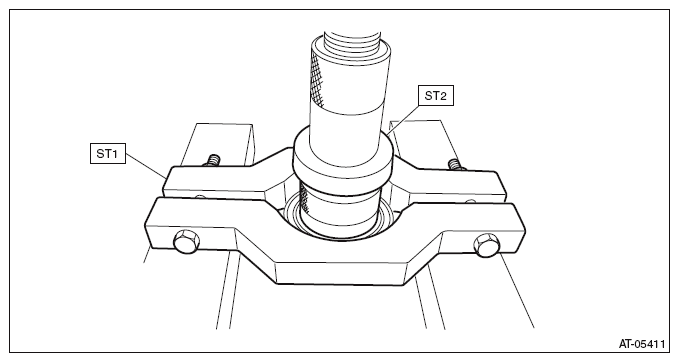

- Remove the ball bearing using the ST1 and ST2.
Preparation tool:
ST1: REMOVER (498077600)
ST2: INSTALLER (399513600)
 Courtesy of SUBARU OF AMERICA, INC.
|
