Transmission Control Module

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

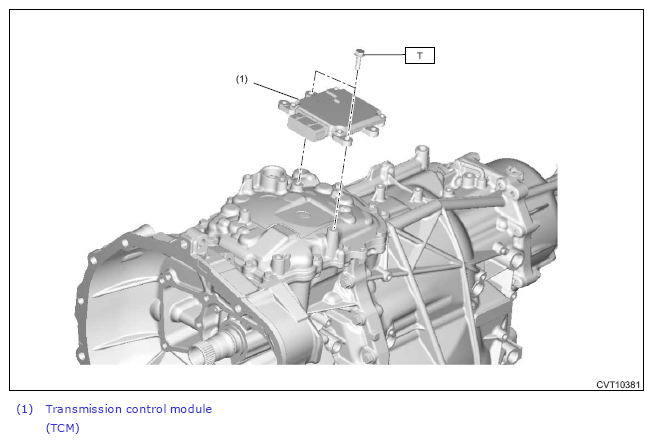

Fig 1: Transmission Control Module Components (With Torque Specifications)
G13603306Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7 (0.7, 5.2)
