Transfer And Extension Case

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

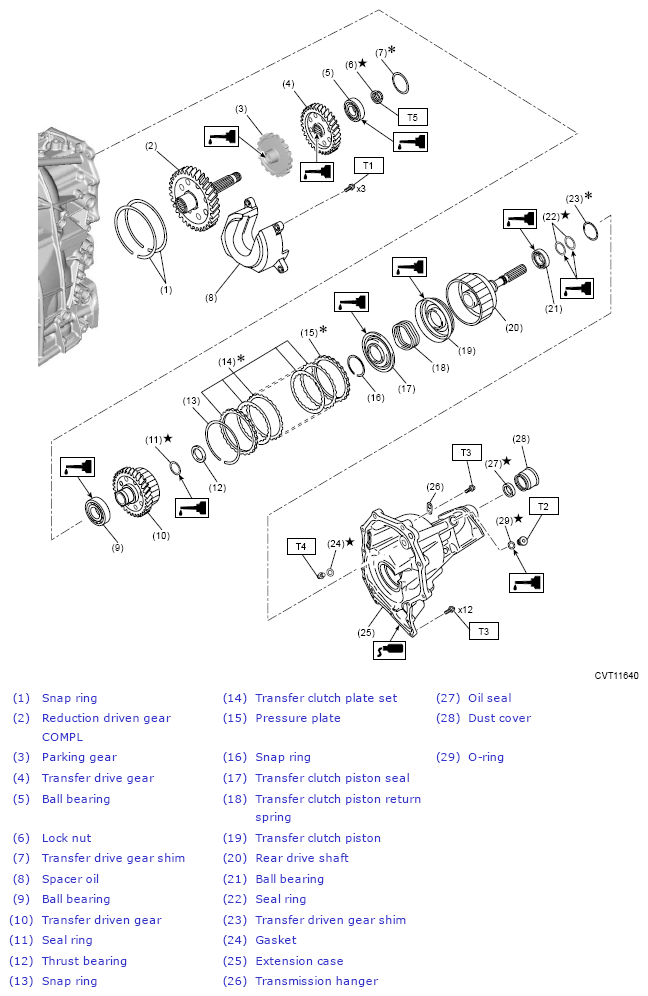

Fig 1: Transfer And Extension Case Components (With Torque Specifications)
G13603303Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17 (1.7, 12.5)

T2: 22 (2.2, 16.2)

T3: 25 (2.5, 18.4)

T4: 35 (3.6, 25.8)

T5: 95 (9.7, 70.1)
