Front Differential Gear

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

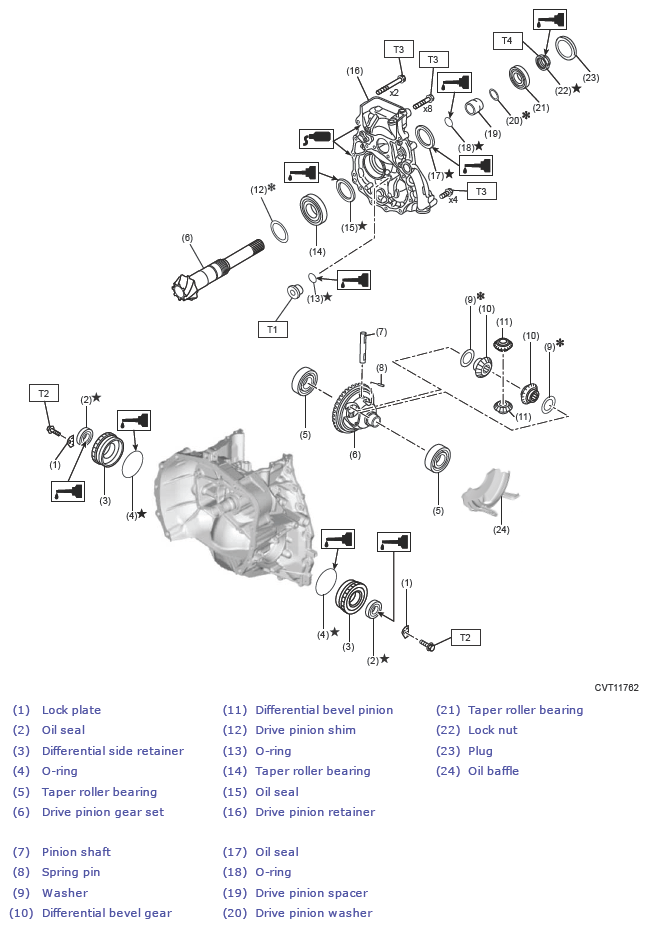

Fig 1: Front Differential Gear Components (With Torque Specifications)
G13603302Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 22 (2.2, 16.2)

T2: 25 (2.5, 18.4)

T3: 43 (4.4, 31.7)

T4:  Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>DRIVE PINION SHAFT ASSEMBLY>ASSEMBLY .
