CVTF Cooler (With Warmer Feature)

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

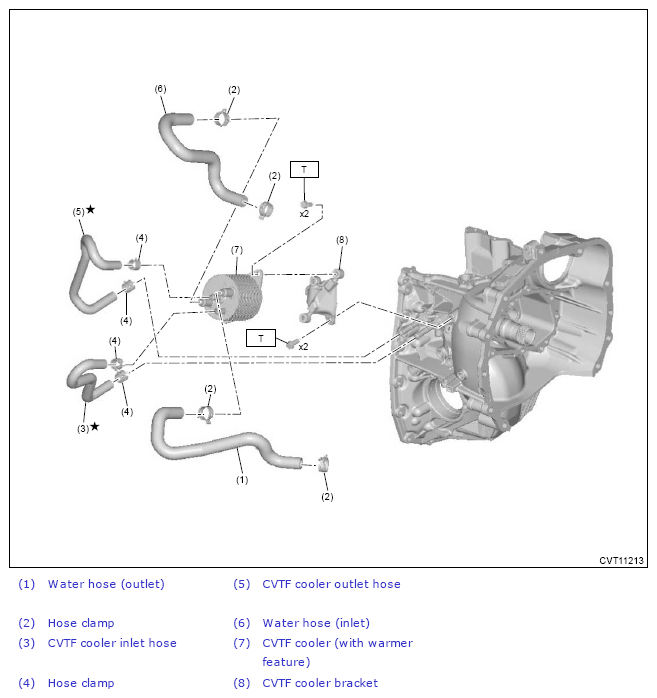

Fig 1: CVTF Cooler (With Warmer Feature) Components (With Torque Specifications)
G13603305Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 23 (2.3, 17.0)
