Differential Case Assembly

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the taper roller bearing using ST1, ST2 and ST3.

    Preparation tool:

    ST1: REMOVER (498077000)

    ST2: REMOVER (899864100)

    ST3: SEAT (398497701)

    G11255998Courtesy of SUBARU OF AMERICA, INC.
  2. Using the ST, remove the spring pin.

    Preparation tool:

    ST: STRAIGHT PIN REMOVER (899904100)

    G11255999Courtesy of SUBARU OF AMERICA, INC.

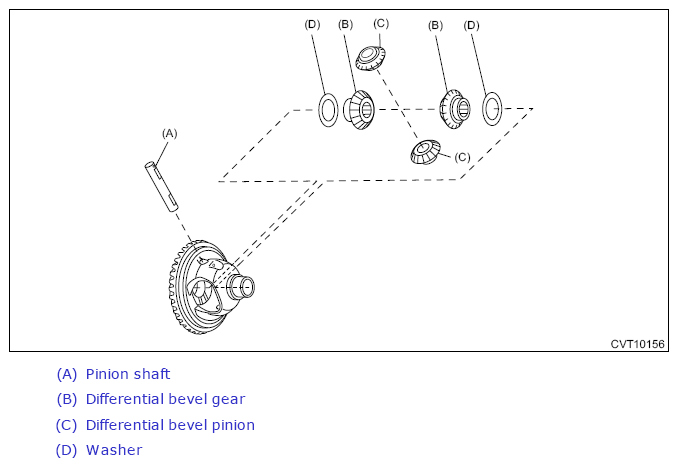

  3. Remove the pinion shaft, and remove the differential bevel pinion, differential bevel gear and washer.
    G13603898Courtesy of SUBARU OF AMERICA, INC.
