Differential Gear Oil: Adjustment

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Immediately after removing the overflow drain plug, remaining gear oil (approx. 8 cc) may come out of the overflow pipe. This is not included in the specified amount. When removing the overflow drain plug, make sure the gear oil flows out of the overflow drain plug hole by filling with gear oil.

Lift up the vehicle.
Remove the filler plug.

Courtesy of SUBARU OF AMERICA, INC.

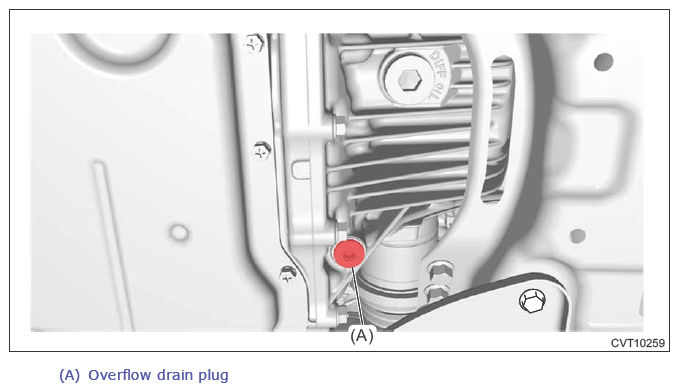

Remove the overflow drain plug.

Courtesy of SUBARU OF AMERICA, INC.
Fill in the differential gear oil through the filler plug hole up to where the oil flows out of the overflow drain plug.
Recommended gear oil:

Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>GENERAL DESCRIPTION>SPECIFICATION>RECOMMENDED GEAR OIL .
When the flow of the differential gear oil turns into a narrow stream, install the overflow drain plug.
NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the filler plug.
NOTE: Use a new gasket.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
