CVTF Cooler (With Warmer Function): Assembly

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

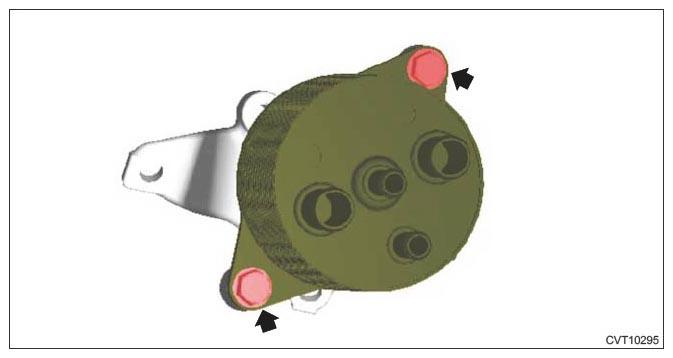

  1. Attach the bracket.

    Tightening torque:

    23 N.m (2.3 kgf-m, 17.0 ft-lb)

    G11255726Courtesy of SUBARU OF AMERICA, INC.
