Transmission Case Side

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the air breather cap.

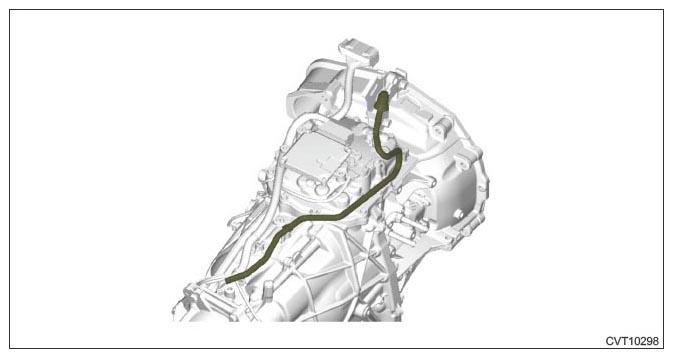

  2. Install the air breather hose.
    G11255732Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transmission case cover.

    Tightening torque:

    Cover (small): 7 N.m (0.7 kgf-m, 5.2 ft-lb)

    Cover (large): 8 N.m (0.8 kgf-m, 5.9 ft-lb)

    NOTE: First install the transmission case cover (large), then insert the transmission case cover (small) between the transmission case cover (large) and the transmission to install.
    G11255547Courtesy of SUBARU OF AMERICA, INC.
  4. Install the transmission assembly. Refer to CONTINUOUSLY VARIABLE TRANSMISSION (TR580 IMPREZA)>AUTOMATIC TRANSMISSION ASSEMBLY>INSTALLATION .
  5. Install the air breather hose to the bracket.
    NOTE: Assemble the hose with the marked position facing in the direction shown in the figure.
    G11255736Courtesy of SUBARU OF AMERICA, INC.
