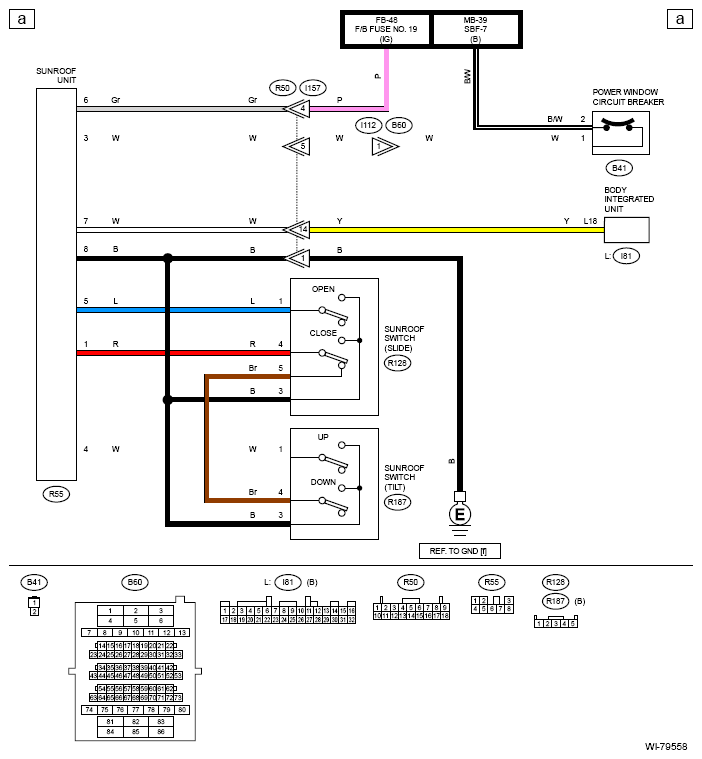

Sunroof Control System: Wiring Diagram

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
G13236070Courtesy of SUBARU OF AMERICA, INC.
