WITHOUT EyeSight

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

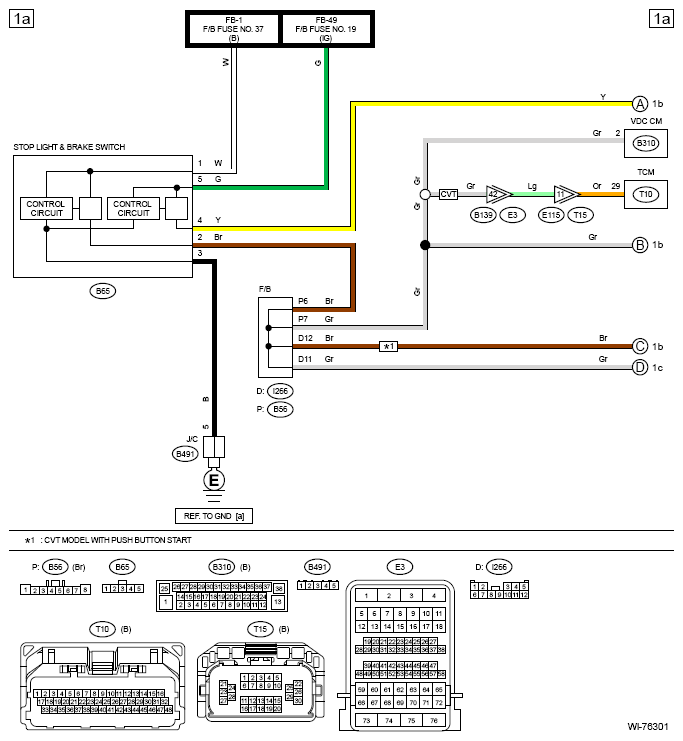

G13236063Courtesy of SUBARU OF AMERICA, INC.
G13236064Courtesy of SUBARU OF AMERICA, INC.

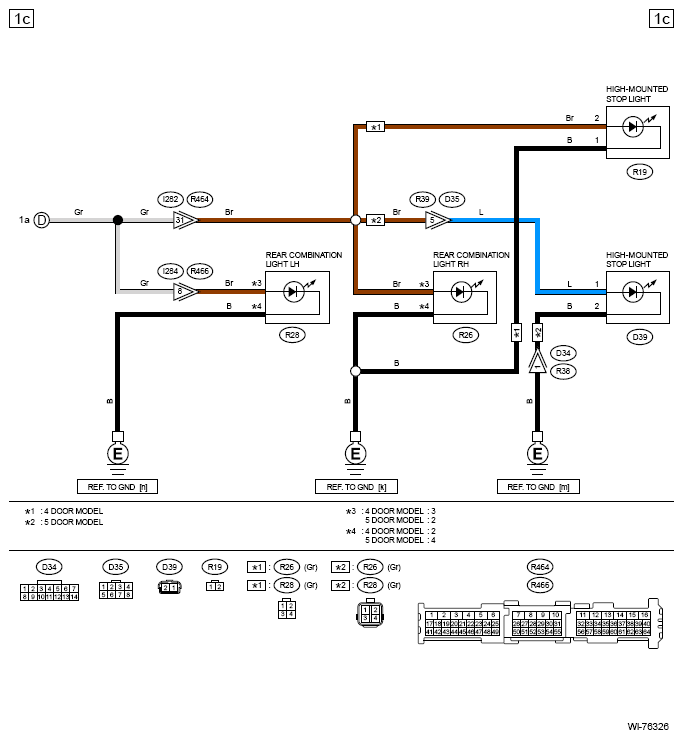

G13236065Courtesy of SUBARU OF AMERICA, INC.
