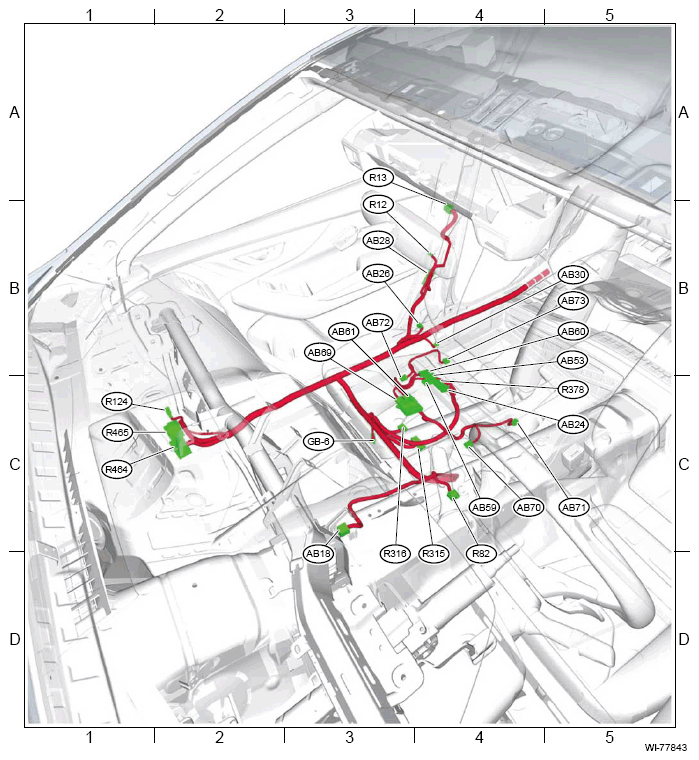

Rear Wiring Harness RH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB18 |
24 |
Y |
C-3 |
|
Airbag CM |
| AB24 |
2 |
Y |
C-4 |
|
Side airbag module RH |
| AB26 |
4 |
Y |
B-4 |
|
Pretensioner RH |
| AB28 |
4 |
Y |
B-4 |
|
Side airbag sensor RH |
| AB30 |
2 |
Y |
B-4 |
|
Lap belt pretensioner RH |
| AB53 |
6 |
Gr |
B-4 |
AB59 |
Occupant detection wiring harness |
| AB59 |
6 |
Gr |
C-4 |
AB53 |
Rear wiring harness RH |
| AB60 |
2 |
Y |
B-4 |
|
Buckle switch (RH) |
| AB61 |
12 |
B |
C-3 |
|
Occupant detection CM |
| AB69 |
12 |
Gr |
C-3 |
|
| AB70 |
3 |
B |
C-4 |
|
Load sensor 1 (FL) |
| AB71 |
3 |
Gr |
C-4 |
|
Load sensor 3 (RL) |
| AB72 |
3 |
Gr |
C-3 |
|
Load sensor 2 (FR) |
| AB73 |
3 |
B |
B-4 |
|
Load sensor 4 (RR) |
| R12 |
4 |
Gr |
B-4 |
|
Front door switch RH |
| R13 |
12 |
|
B-4 |
D28 |
Rear door cord RH |
| R82 |
8 |
|
C-4 |
R81 |
Rear wiring harness LH |
| R124 |
2 |
Y |
C-2 |
AB63 |
Airbag wiring harness |
| R315 |
30 |
B |
C-4 |
|
Audio amplifier |
| R316 |
24 |
|
C-3 |
|
| R378 |
14 |
|
C-4 |
|
Seat heater RH |
| R464 |
64 |
|
C-2 |
i282 |
Instrument panel wiring harness |
| R465 |
48 |
|
C-2 |
i283 |
| GB-6 |
- |
- |
C-3 |
|
- |
