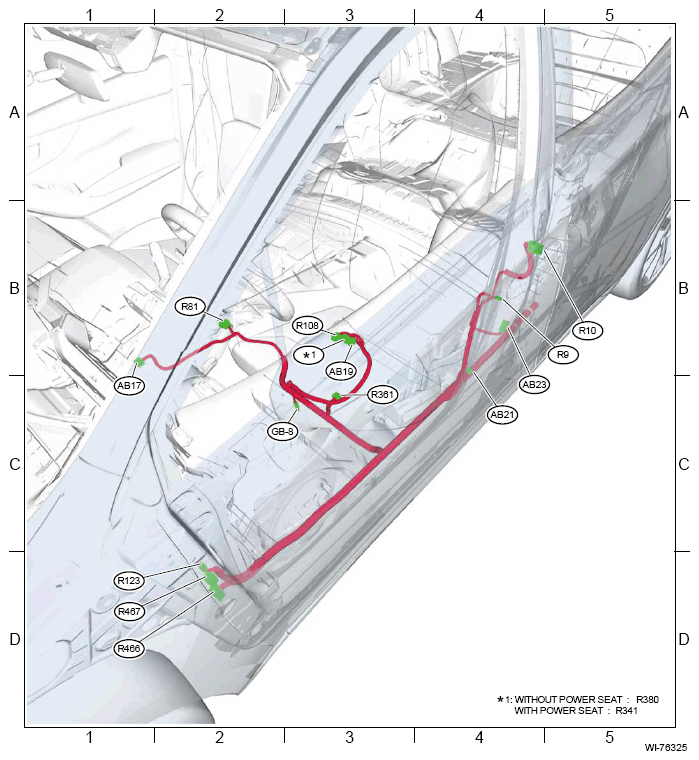

Rear Wiring Harness LH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB17 |
24 |
Y |
B 1 |
|
Airbag CM |
| AB19 |
2 |
Y |
B-3 |
|
Side airbag module LH |
| AB21 |
4 |
Y |
B-4 |
|
Pretensioner LH |
| AB23 |
4 |
Y |
B-4 |
|
Side airbag sensor LH |
| R9 |
4 |
Gr |
B-4 |
|
Front door switch LH |
| R10 |
12 |
|
B-4 |
D22 |
Rear door cord LH |
| R81 |
8 |
|
B-2 |
R82 |
Rear wiring harness RH |
| R108 |
2 |
|
B-3 |
|
Seat belt switch LH |
| R123 |
2 |
Y |
D-2 |
AB62 |
Airbag wiring harness |
| R341 |
14 |
|
B-3 |
R205 |
Power seat LH |
| R361 |
24 |
|
C-3 |
|
RAB CM |
| R380 |
14 |
|
B-3 |
|
Seat heater LH |
| R466 |
64 |
|
D-2 |
i284 |
Instrument panel wiring harness |
| R467 |
48 |
|
D-2 |
i285 |
| GB-8 |
- |
|
C-3 |
|
- |
