Section 1 (OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations)
>>
Rear Defogger System
>>
Wiring Diagram

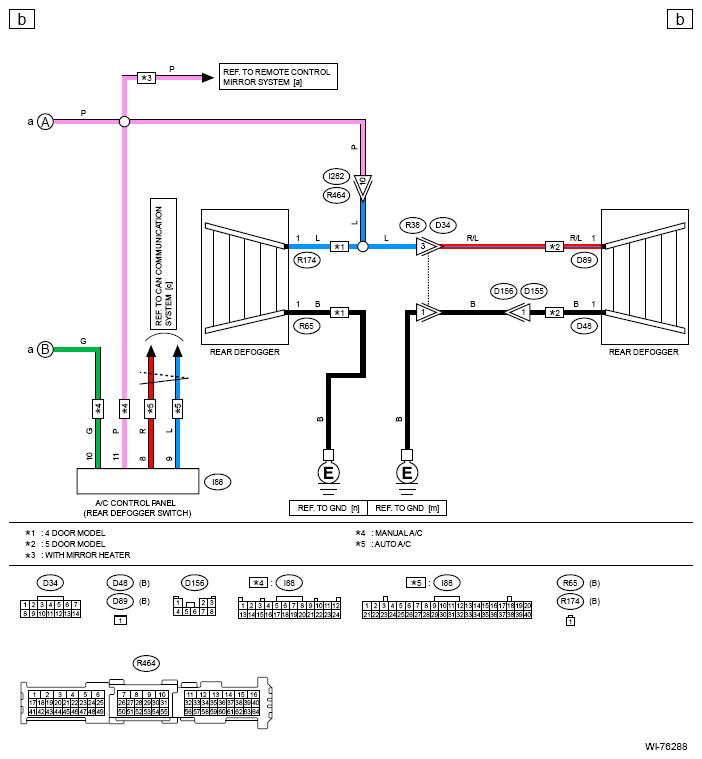

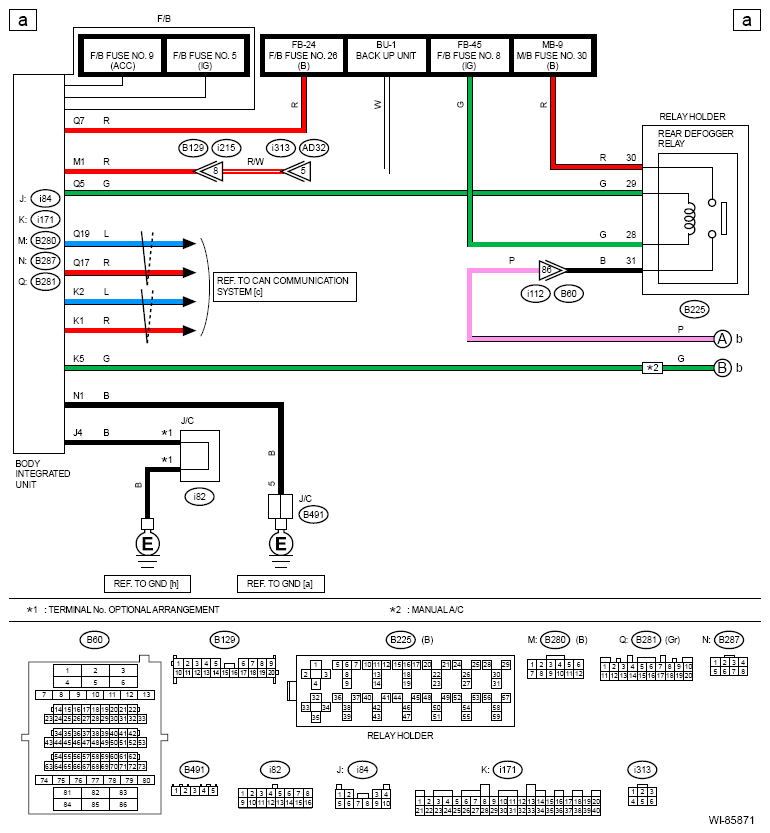

Rear Defogger System: Wiring Diagram
WARNING:
This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
