Without Push Button Start
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Load |
|---|---|
| MB-1 | Blower motor relay |
| MB-2 | Power amplifier |
| Audio amplifier | |
| MB-3 | Audio |
| MB-5 | VDC CM |
| MB-6 | VDC CM |
| MB-7 | Wiper deicer relay |
| MB-9 | Rear defogger relay |
| MB-10 | Front fog light relay |
| MB-11 | Main fan relay 1 |

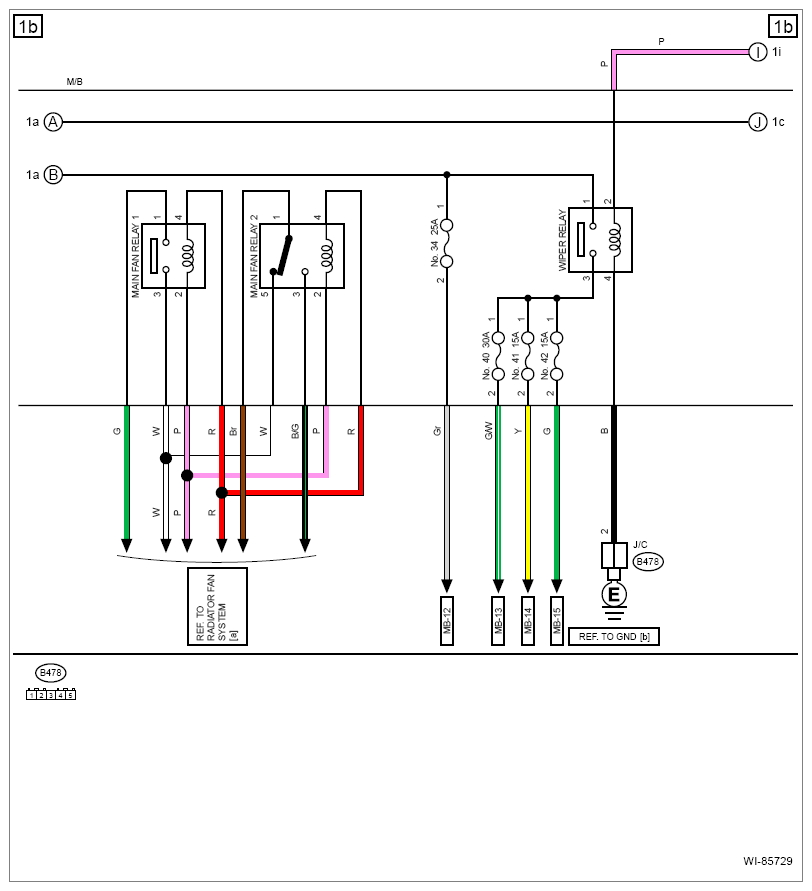

| MB-12 | Sub fan relay |
| MB-13 | Front wiper motor |
| Combination switch | |
| MB-14 | Front washer motor |
| MB-15 | Rear washer motor |
| Rear wiper motor | |
| Rear wiper relay | |
| MB-16 | Power steering CM |
| MB-17 | Data link connector |
| MB-18 | ECM |
| Battery sensor | |
| TCM | |

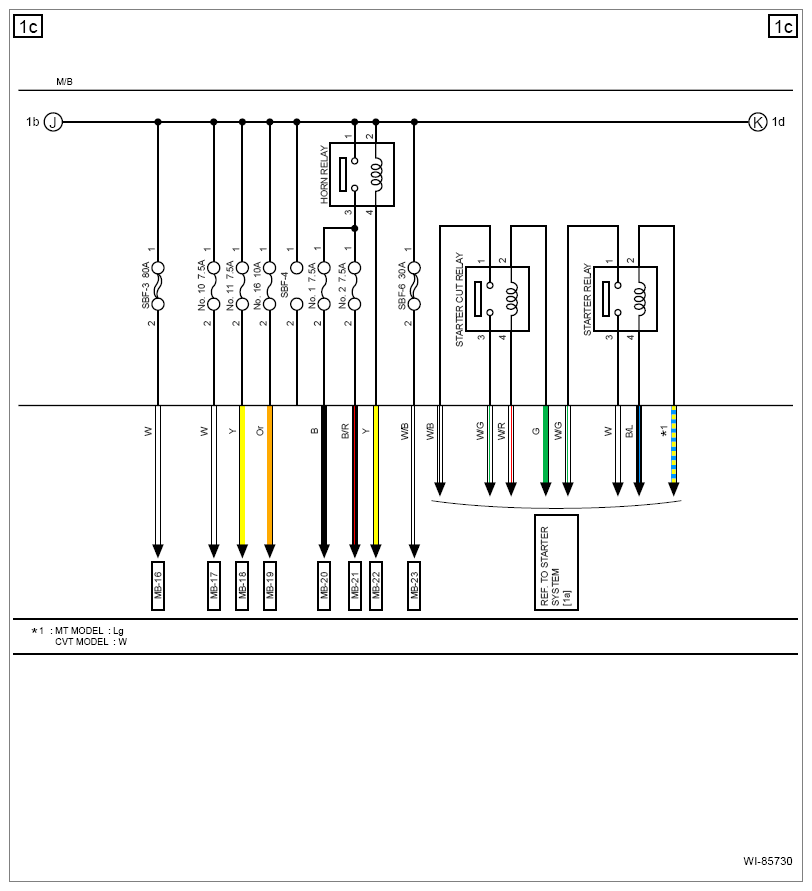

| MB-19 | Battery sensor |
| MB-20 | Horn LH |
| MB-21 | Horn RH |
| MB-22 | Body integrated unit |
| Horn switch | |
| MB-23 | Starter cut relay |
| MB-24 | EGR control valve |
| Intake camshaft position sensor LH | |
| Intake camshaft position sensor RH | |
| Leak check valve ASSY | |
| Purge control solenoid valve | |
| Exhaust camshaft position sensor RH | |
| Exhaust camshaft position sensor LH | |

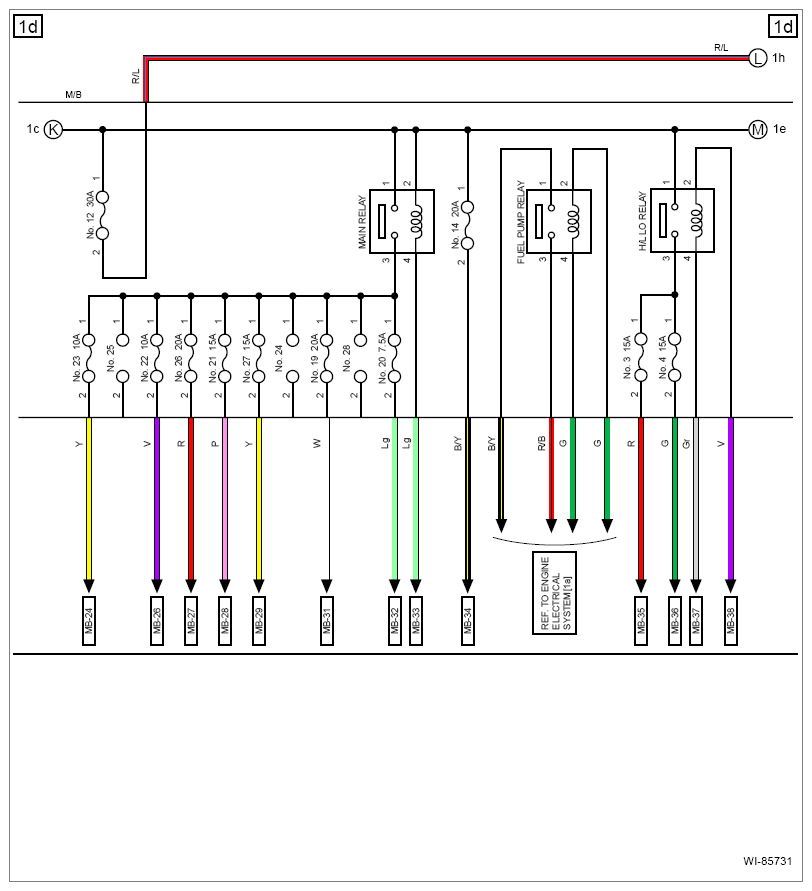

| MB-26 | Intake oil control solenoid LH |
| Intake oil control solenoid RH | |
| Exhaust oil control solenoid RH | |
| Exhaust oil control solenoid LH | |
| MB-27 | Front oxygen (A/F) sensor |
| Rear oxygen sensor | |
| MB-28 | Ignition coil No. 1 |
| Ignition coil No. 2 | |
| Ignition coil No. 3 | |
| Ignition coil No. 4 | |
| MB-29 | ECM |
| MB-31 | TCM |
| MB-32 | Primary speed sensor |
| Secondary speed sensor | |
| Turbine speed sensor | |
| MB-33 | ECM |
| MB-34 | Fuel pump relay |
| MB-35 | Front combination light RH |
| MB-36 | Front combination light LH |
| MB-37 | Body integrated unit |
| Daytime running light relay | |
| MB-38 | Body integrated unit |

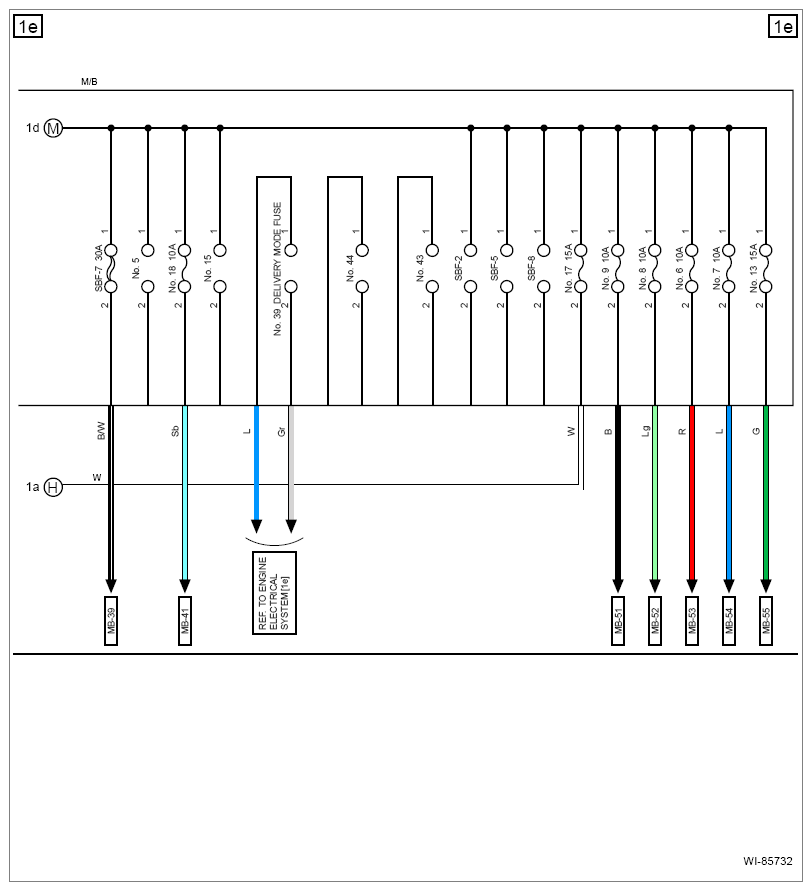

| MB-39 | Power window circuit breaker |
| MB-41 | Data communication module |
| MB-51 | Occupant detection CM |
| MB-52 | Body integrated unit |
| MB-53 | Body integrated unit |
| MB-54 | Body integrated unit |
| MB-55 | Body integrated unit |
| BU-1 | Body integrated unit |
| BU-2 | Front lock relay |
| Front unlock relay | |
| Rear gate/trunk unlock relay | |
| Body integrated unit | |
| ST-1 | Clutch start switch |
| ECM | |
| Starter relay | |

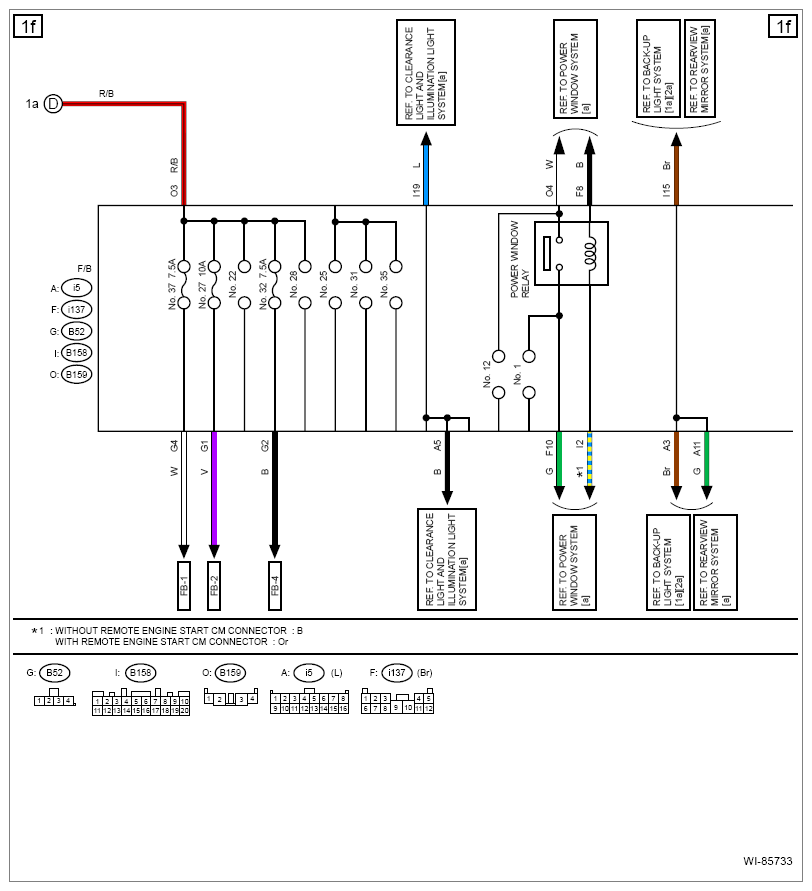

| FB-1 | Stop light & brake switch |
| Stop light relay | |
| FB-2 | A/C relay |
| FB-4 | Body integrated unit |

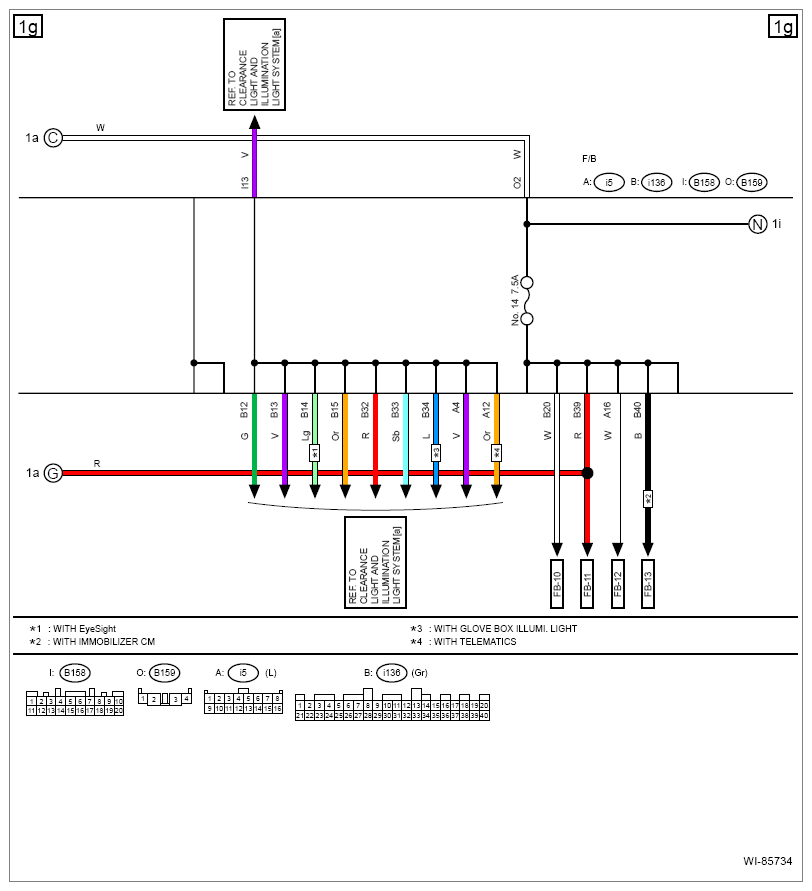

| FB-10 | Combination meter |
| FB-11 | A/C control panel |
| FB-12 | TPMS & keyless entry CM |
| Keyless entry CM (without push button start) | |
| FB-13 | Immobilizer CM |

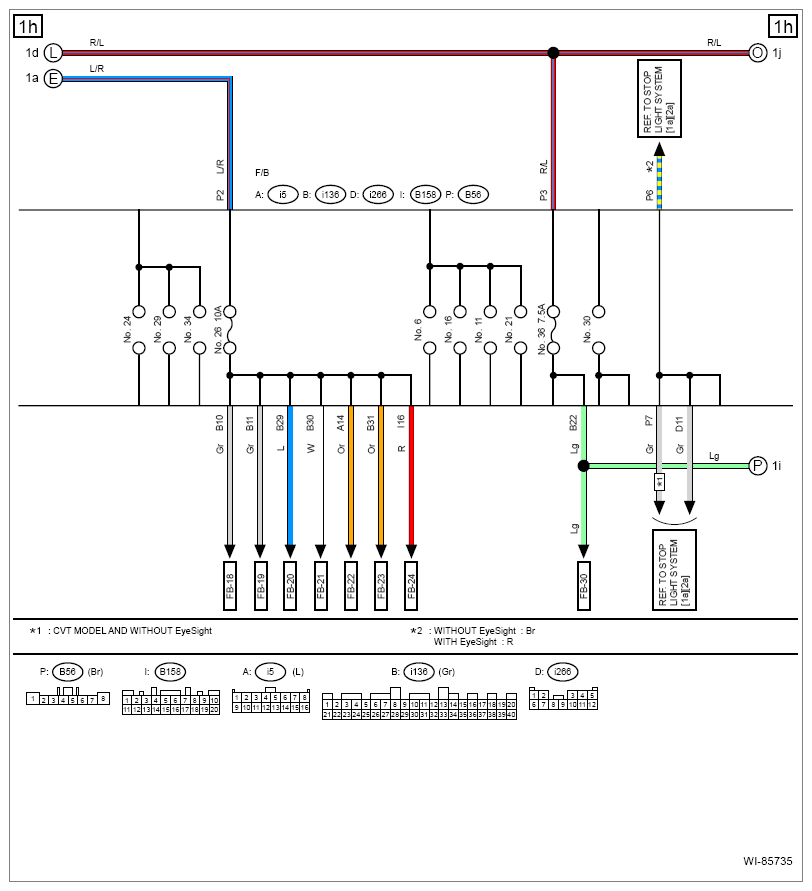

| FB-18 | MFD |
| FB-19 | Outer mirror ASSY RH |
| FB-20 | Immobilizer antenna (without push button start) |
| FB-21 | Outer mirror ASSY LH |
| FB-22 | Luggage room light |
| Trunk room light | |
| FB-23 | Warning box |
| Vanity mirror light RH | |
| Room light | |
| Vanity mirror light LH | |
| Spot map light | |
| FB-24 | Body integrated unit |

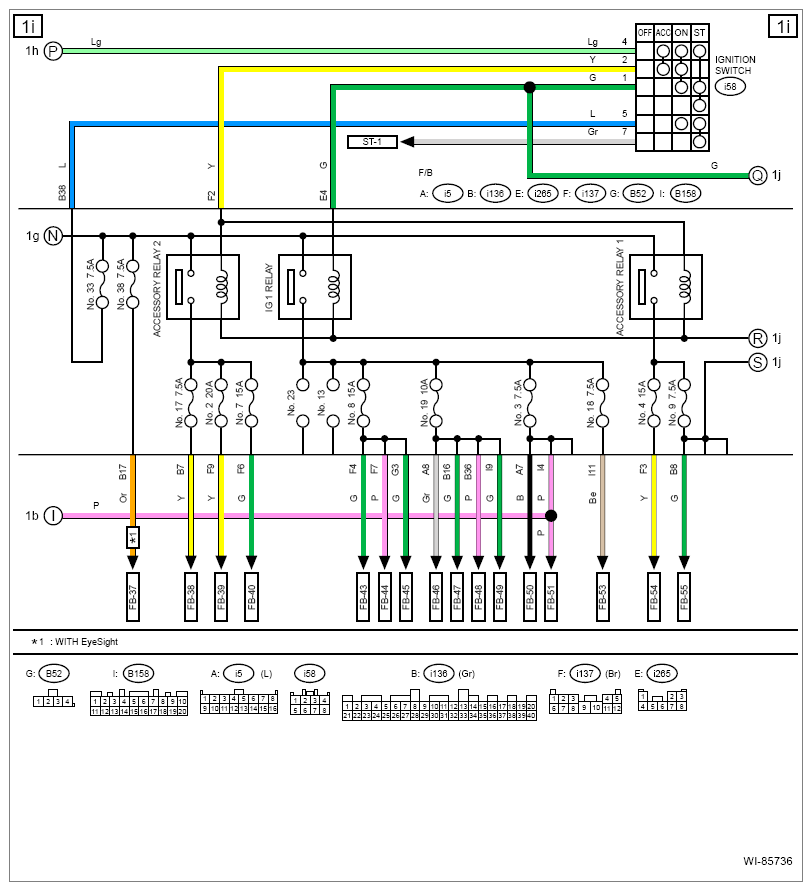

| FB-30 | Ignition switch |
| Key warning switch | |
| FB-37 | Stereo camera |
| RAB CM | |
| FB-38 | Remote control mirror switch |
| Rearview mirror | |
| FB-39 | Seat heater switch |
| Front accessory power supply socket | |
| FB-40 | Rear accessory power supply socket (console) |
| FB-43 | Blower motor relay |
| FB-44 | Data communication module |
| A/C control panel | |
| Intake door actuator | |
| FB-45 | Pressure switch |
| Rear defogger relay | |
| Sub fan relay | |
| Wiper deicer relay | |
| FB-46 | TPMS CM |
| TPMS & keyless entry CM | |
| Radar sensor LH (master) | |
| RAB CM | |
| Radar sensor RH (slave) | |
| Keyless entry CM (without push button start) | |
| FB-47 | BSD/RCTA OFF switch |
| Data link connector | |
| FB-48 | Stereo camera |
| Warning box | |
| Sunroof unit | |
| FB-49 | Clutch switch |
| Stop light & brake switch | |
| FB-50 | Power window relay |
| Immobilizer CM | |
| FB-51 | ECM |
| Main fan relay 1 | |
| Main fan relay 2 | |
| FB-53 | Front combination light LH |
| Front combination light RH | |
| Auto headlight beam leveler CM | |
| Back-up light switch | |
| Inhibitor switch | |
| FB-54 | AUX input terminal (instrument panel) |
| AUX input terminal (console) | |
| Data communication module | |
| Audio | |
| Audio amplifier | |
| FB-55 | A/C control panel |
| FB-58 | VDC CM |
| Stop light relay | |
| FB-59 | Steering angle sensor |
| FB-60 | Power steering CM |
| FB-61 | MFD |
| FB-62 | Combination meter |
| FB-63 | Airbag CM |
| FB-64 | Occupant detection CM |
| FB-67 | ECM |
| Fuel pump relay | |
| Starter cut relay | |
| Starter relay | |
| TCM |
