Without Telematics

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

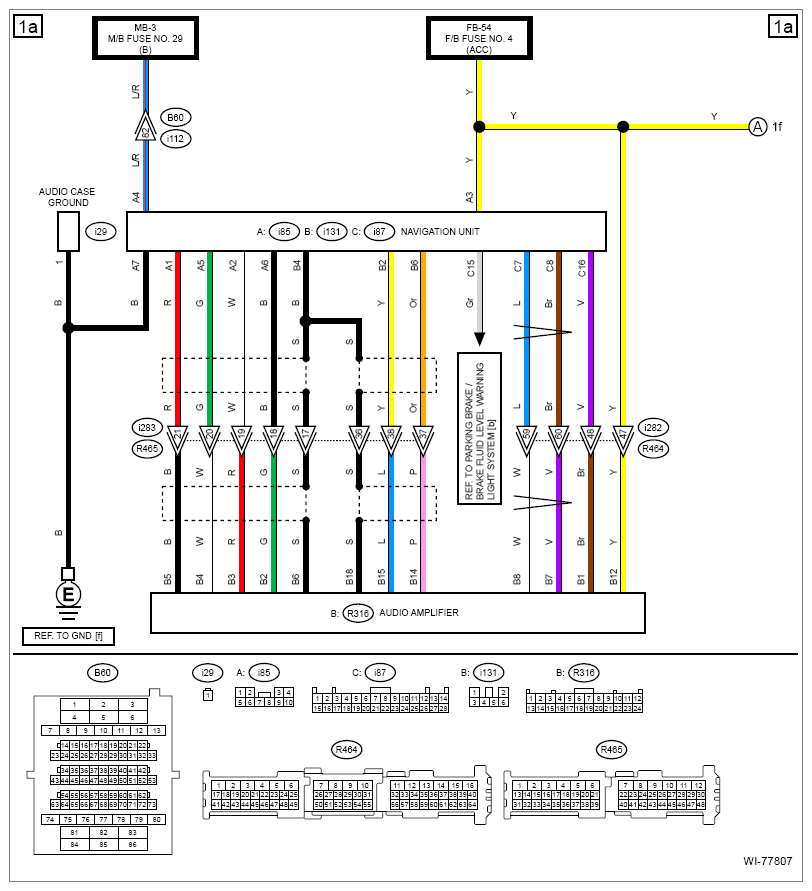

G13607794Courtesy of SUBARU OF AMERICA, INC.

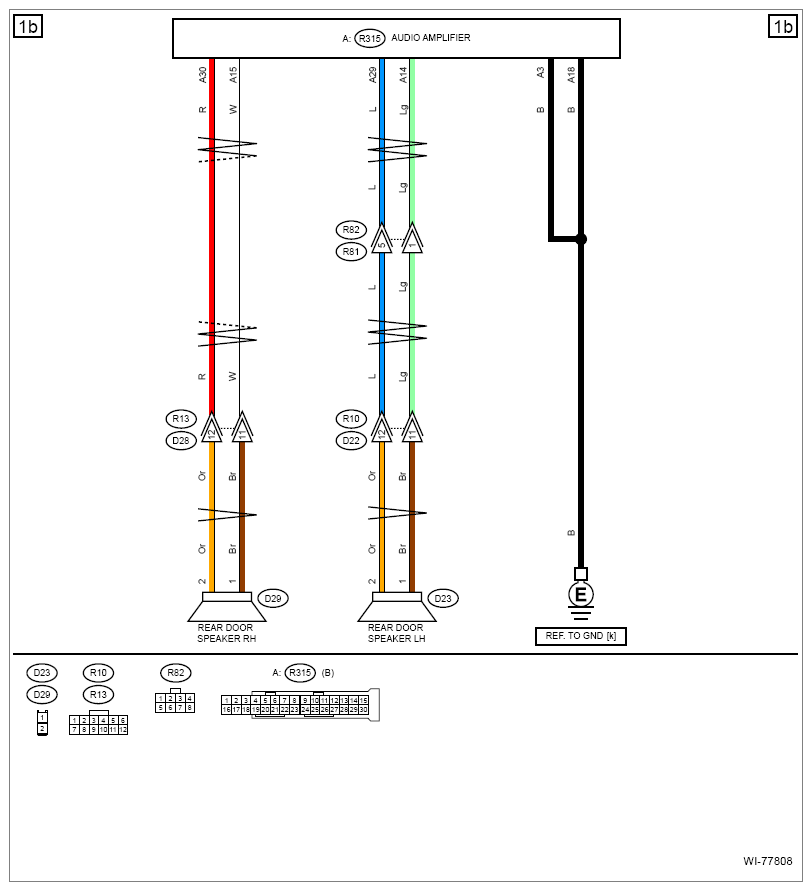

G13607795Courtesy of SUBARU OF AMERICA, INC.

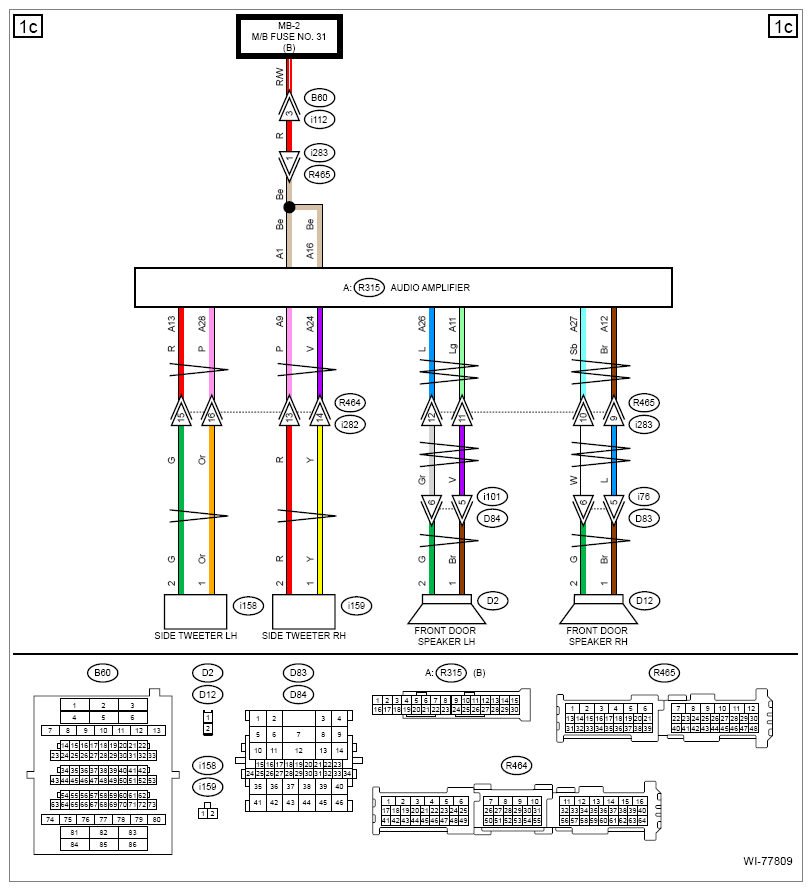

G13607796Courtesy of SUBARU OF AMERICA, INC.

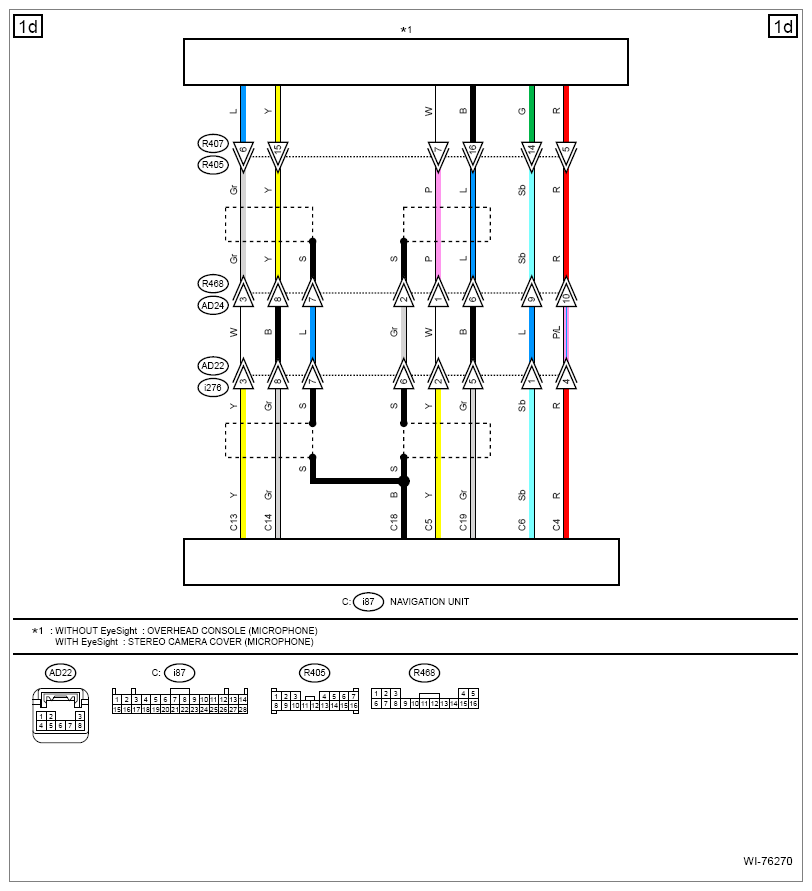

G13607797Courtesy of SUBARU OF AMERICA, INC.

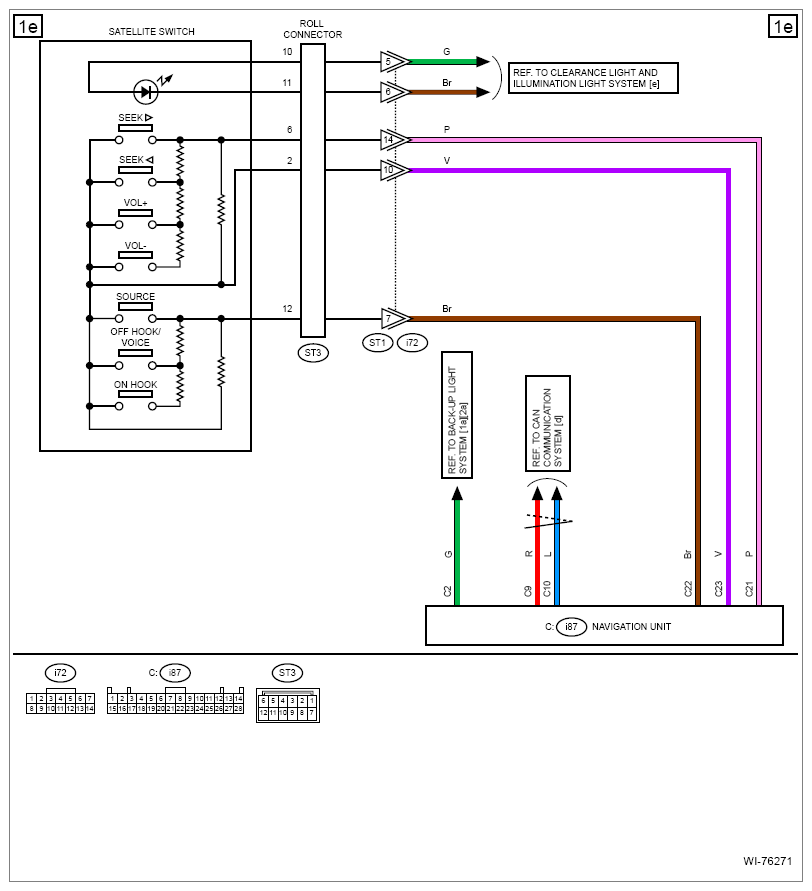

G13607798Courtesy of SUBARU OF AMERICA, INC.

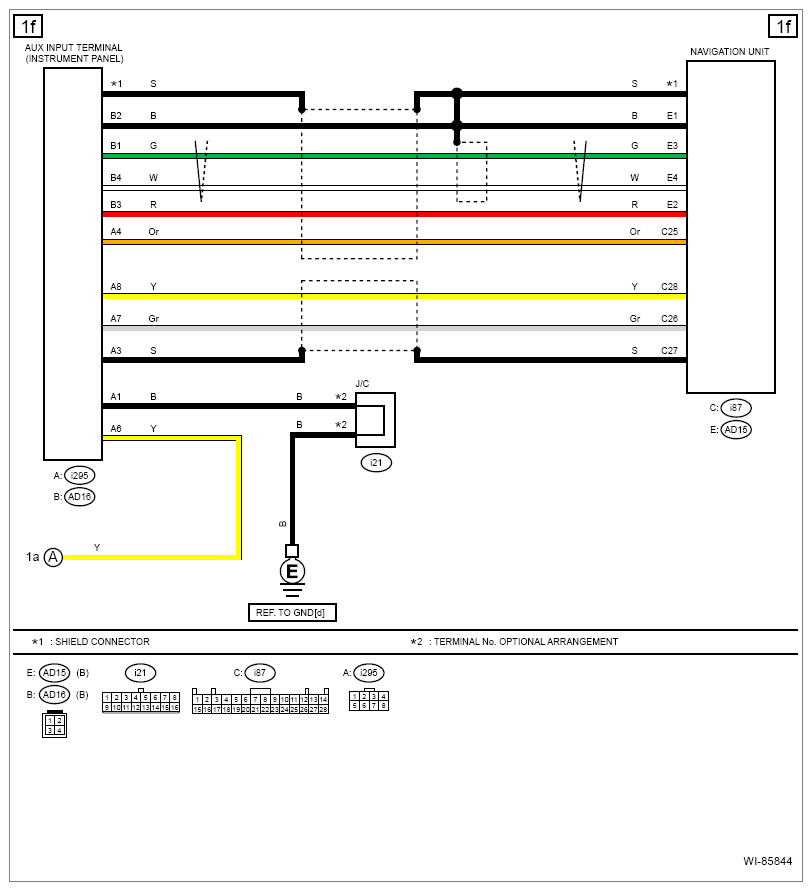

G13607799Courtesy of SUBARU OF AMERICA, INC.

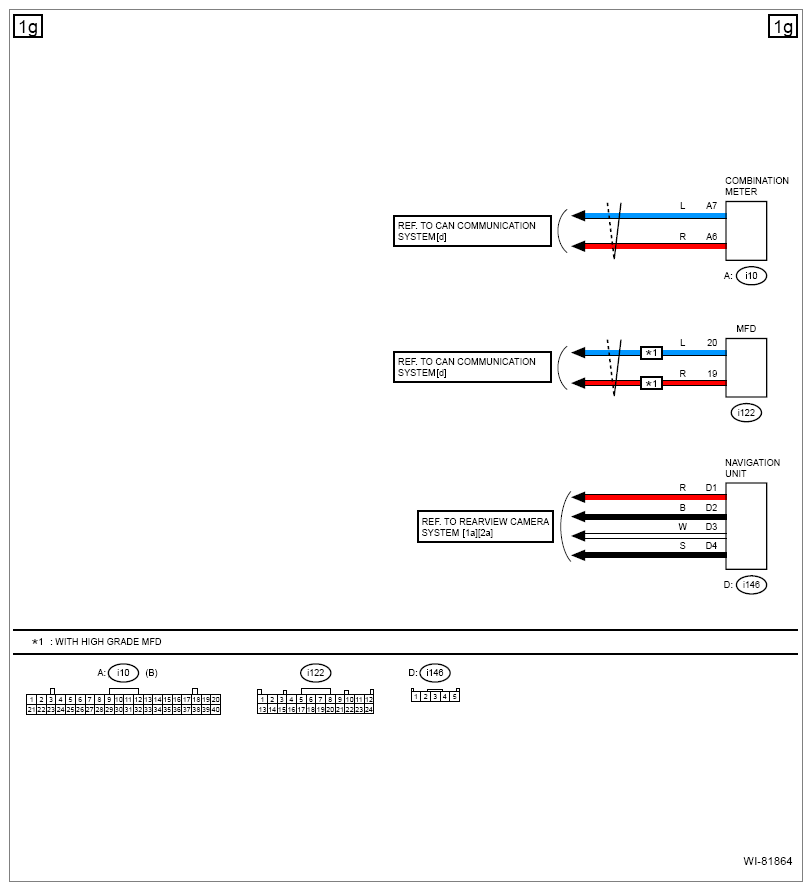

G13607800Courtesy of SUBARU OF AMERICA, INC.

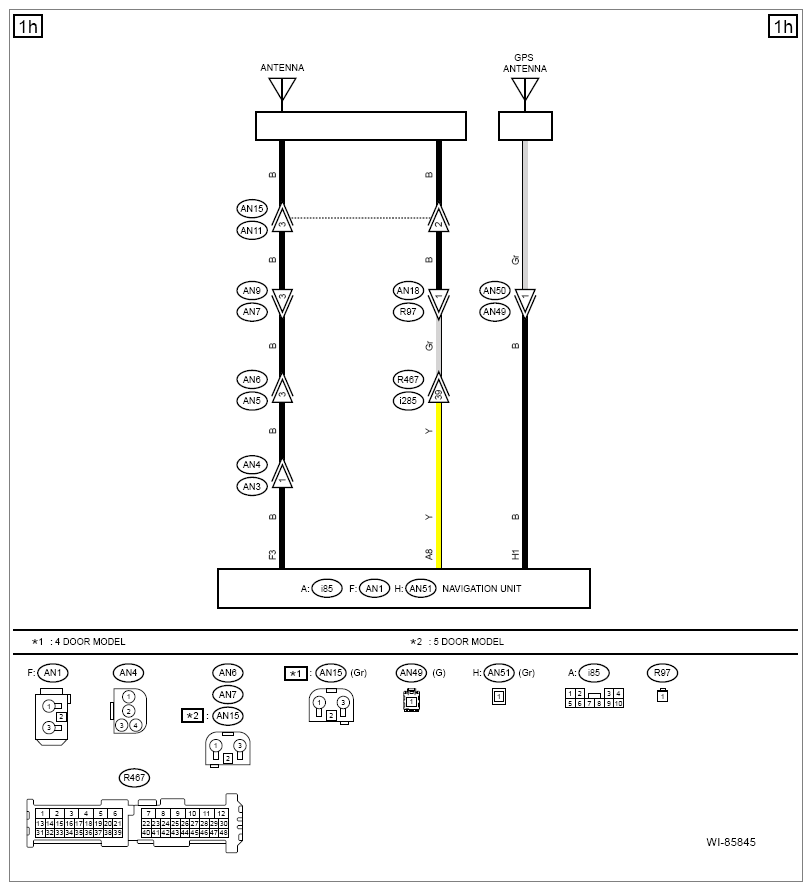

G13607801Courtesy of SUBARU OF AMERICA, INC.
