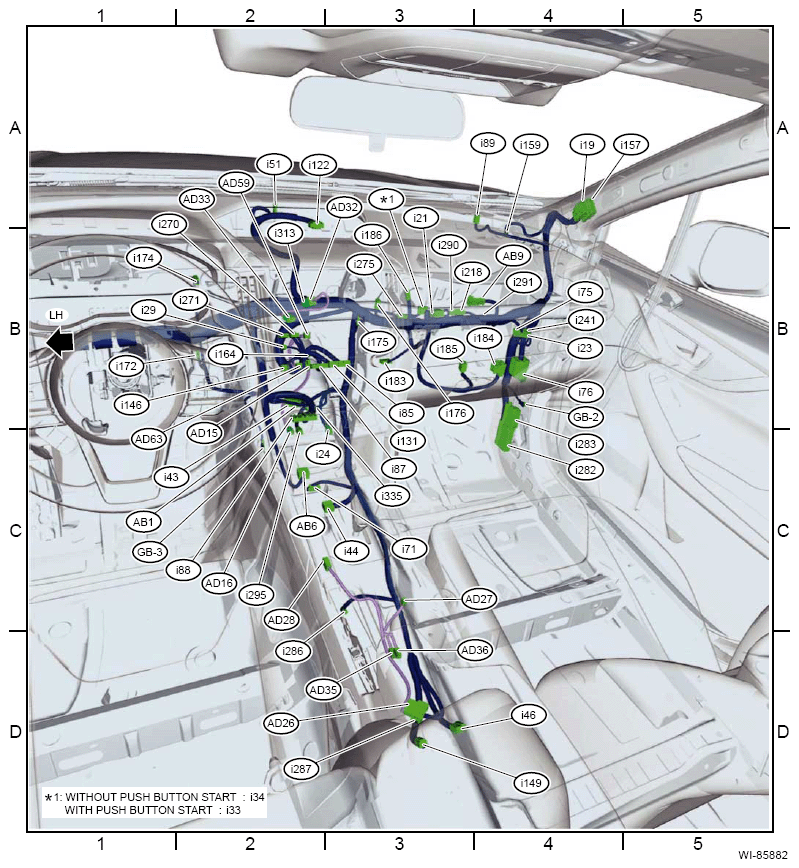

Instrument Panel Wiring Harness RH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB1 |
4 |
|
B-2 |
i43 |
Instrument panel wiring harness |
| AB6 |
30 |
Y |
C-2 |
|
Airbag CM |
| AB9 |
4 |
Y |
B-4 |
|
Passenger's airbag module |
| AD15 |
4 |
B |
B-2 |
|
Audio |
| 4 |
B |
B-2 |
|
Navigation unit |
| AD16 |
4 |
B |
C-2 |
|
AUX input terminal |
| AD26 |
14 |
|
D-3 |
i287 |
Instrument panel wiring harness |
| AD27 |
8 |
|
C-3 |
|
Seat heater switch |
| AD28 |
2 |
|
C-3 |
|
Shift position indicator (without shift boot) |
| 4 |
|
C-3 |
|
Shift position indicator (with shift boot) |
| AD32 |
6 |
|
B-2 |
i313 |
Instrument panel wiring harness |
| AD33 |
10 |
|
B-2 |
|
Door lock back up unit |
| AD35 |
4 |
|
D-3 |
|
J/C |
| AD36 |
4 |
|
D-3 |
|
| AD59 |
4 |
Br |
B-2 |
|
Data communication module |
| AD63 |
4 |
B |
B-2 |
|
Audio |
| 4 |
B |
B-2 |
|
Navigation unit |
| i19 |
14 |
|
A-4 |
R96 |
Roof cord |
| i21 |
16 |
|
B-3 |
|
J/C |
| i23 |
2 |
|
B-4 |
|
Glove box light |
| i24 |
2 |
B |
B-3 |
|
Front accessory power supply socket |
| i29 |
1 |
|
B-2 |
|
Audio case ground |
| i33 |
5 |
|
B-3 |
|
ID code box |
| i34 |
16 |
|
B-3 |
|
Immobilizer CM |
| i43 |
4 |
|
B-2 |
AB1 |
Airbag wiring harness |
| i44 |
8 |
|
C-3 |
|
Select lever |
| i46 |
2 |
B |
D-3 |
|
Rear accessory power supply socket (console) |
| i51 |
2 |
|
A-2 |
|
Sunload sensor |
| i71 |
3 |
|
C-2 |
|
Keyless access interior antenna (front) |
| i75 |
28 |
|
B-4 |
|
Keyless access CM |
| i76 |
46 |
|
B-4 |
D83 |
Front door cord RH |
| i85 |
10 |
|
B-3 |
|
Audio |
| 10 |
|
B-3 |
|
Navigation unit |
| i87 |
28 |
|
B-2 |
|
Audio |
| 28 |
|
B-2 |
|
Navigation unit |
| i88 |
24 |
|
B-2 |
|
A/C control panel (manual A/C) |
| 40 |
|
B-2 |
|
A/C control panel (auto A/C) |
| i89 |
3 |
|
A-4 |
|
Auto light sensor |
| i122 |
12 |
B |
A-2 |
|
MFD (with standard MFD) |
| 24 |
|
A-2 |
|
MFD (with high grade MFD) |
| i131 |
6 |
|
B-3 |
|
Audio |
| 6 |
|
B-3 |
|
Navigation unit |
| i146 |
5 |
|
B-2 |
|
Audio |
| 5 |
|
B-2 |
|
Navigation unit |
| i149 |
8 |
|
D-3 |
|
AUX input terminal (console) |
| i157 |
18 |
|
A-4 |
R50 |
Roof cord |
| i159 |
4 |
|
B-4 |
|
Side tweeter RH (without audio amplifier) |
| 2 |
|
B-4 |
|
Side tweeter RH (with audio amplifier) |
| i164 |
2 |
|
B-2 |
|
Power amplifier |
| i172 |
2 |
|
B-2 |
|
Evaporator sensor |
| i174 |
5 |
G |
B-2 |
|
Air mix door actuator LH |
| i175 |
5 |
G |
B-3 |
|
Air mix door actuator (without L/R independent air conditioner) |
| 5 |
G |
B-3 |
|
Air mix door actuator RH (with L/R independent air conditioner) |
| i176 |
5 |
G |
B-3 |
|
Mode door actuator |
| i183 |
5 |
|
B-3 |
|
Power transistor |
| i184 |
4 |
|
B-4 |
|
Blower motor relay |
| i185 |
2 |
|
B-3 |
|
Blower motor |
| i186 |
4 |
G |
B-3 |
|
Intake door actuator (manual A/C) |
| 5 |
G |
B-3 |
|
Intake door actuator (auto A/C) |
| i218 |
2 |
|
B-3 |
i290 |
Instrument panel wiring harness |
| i241 |
30 |
|
B-4 |
|
Keyless access CM |
| i270 |
20 |
Gr |
B-2 |
|
Data communication module |
| i271 |
16 |
Gr |
B-2 |
|
| i275 |
16 |
|
B-3 |
|
J/C |
| i282 |
64 |
|
C-4 |
R464 |
Rear wiring harness RH |
| i283 |
48 |
|
B-4 |
R465 |
| i286 |
1 |
B |
C-3 |
|
Parking brake switch |
| i287 |
14 |
|
D-3 |
AD26 |
Adapter cord (console) |
| i290 |
2 |
|
B-3 |
i218 |
Instrument panel wiring harness |
| i291 |
8 |
|
B-4 |
|
Remote engine start CM connector |
| i295 |
8 |
|
C-2 |
|
AUX input terminal (instrument panel) |
| i313 |
6 |
|
B-2 |
|
Adapter cord |
| i335 |
2 |
|
B-2 |
|
Center tray illumi. |
| GB-2 |
- |
- |
B-4 |
|
- |
| GB-3 |
- |
- |
C-2 |
|
- |
