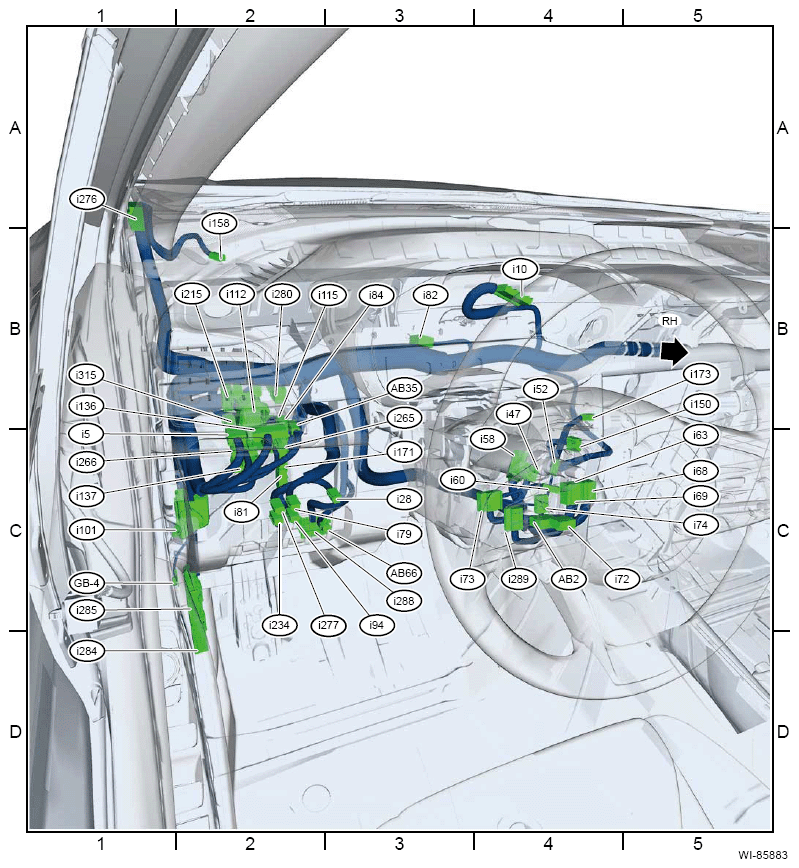

Instrument Panel Wiring Harness LH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB2 |
4 |
Y |
C-4 |
AB7 |
Driver's airbag module |
| AB35 |
2 |
|
B-2 |
|
F/B |
| AB66 |
2 |
B |
C-3 |
|
Driver's knee airbag module |
| i5 |
16 |
L |
C-2 |
|
F/B |
| i10 |
40 |
B |
B-4 |
|
Combination meter |
| i28 |
4 |
|
C-3 |
|
OP connector (fog light switch) |
| i47 |
7 |
B |
C-4 |
|
Steering lock CM |
| i52 |
2 |
B |
C-4 |
|
Key lock solenoid (without push button start) |
| i58 |
8 |
|
C-4 |
|
Ignition switch (without push button start) |
| i60 |
5 |
|
C-4 |
|
Immobilizer antenna (without push button start) |
| i63 |
2 |
|
C-4 |
|
Key warning switch |
| i68 |
7 |
|
C-4 |
|
Combination switch |
| i69 |
10 |
|
C-4 |
|
| i72 |
14 |
|
C-4 |
ST1 |
Roll connector |
| i73 |
20 |
|
C-4 |
|
Combination switch |
| i74 |
5 |
|
C-4 |
|
Steering angle sensor |
| i79 |
6 |
|
C-2 |
|
Illumination control switch |
| i81 |
32 |
B |
C-2 |
|
Body integrated unit |
| i82 |
16 |
|
B-3 |
|
J/C |
| i84 |
10 |
|
B-2 |
|
Body integrated unit |
| i94 |
8 |
Gr |
C-2 |
|
BSD/RCTA OFF switch |
| i101 |
46 |
|
C-2 |
D84 |
Front door cord LH |
| i112 |
86 |
|
B-2 |
B60 |
Bulkhead wiring harness |
| i115 |
4 |
Y |
B-2 |
B49 |
| i136 |
40 |
Gr |
C-2 |
|
F/B |
| i137 |
12 |
Br |
C-2 |
|
| i150 |
14 |
B |
C-4 |
|
Push button ignition switch |
| i158 |
4 |
|
B-2 |
|
Side tweeter LH (without audio amplifier) |
| |
2 |
|
B-2 |
|
Side tweeter LH (with audio amplifier) |
| i171 |
40 |
|
C-2 |
|
Body integrated unit |
| i173 |
2 |
|
B-4 |
|
In-vehicle sensor |
| i215 |
20 |
|
B-2 |
B129 |
Bulkhead wiring harness |
| i234 |
8 |
B |
C-2 |
|
VDC OFF switch |
| i265 |
8 |
|
C-2 |
|
F/B |
| i266 |
12 |
|
C-2 |
|
| i276 |
8 |
|
A-1 |
AD22 |
Adapter cord (without telematics) |
| 16 |
|
A-1 |
AD22 |
Adapter cord (with telematics) |
| i277 |
4 |
Gr |
C-2 |
|
SRH OFF switch |
| i280 |
5 |
Gr |
B-2 |
|
Relay holder |
| i284 |
64 |
|
D-2 |
R466 |
Rear wiring harness LH |
| i285 |
48 |
|
C-2 |
R467 |
| i288 |
16 |
|
C-2 |
|
Data link connector |
| i289 |
4 |
|
C-4 |
ST13 |
Roll connector |
| i315 |
10 |
B |
B-2 |
|
Fuse holder |
| GB-4 |
- |
|
C-1 |
|
- |
