With Push Button Start

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

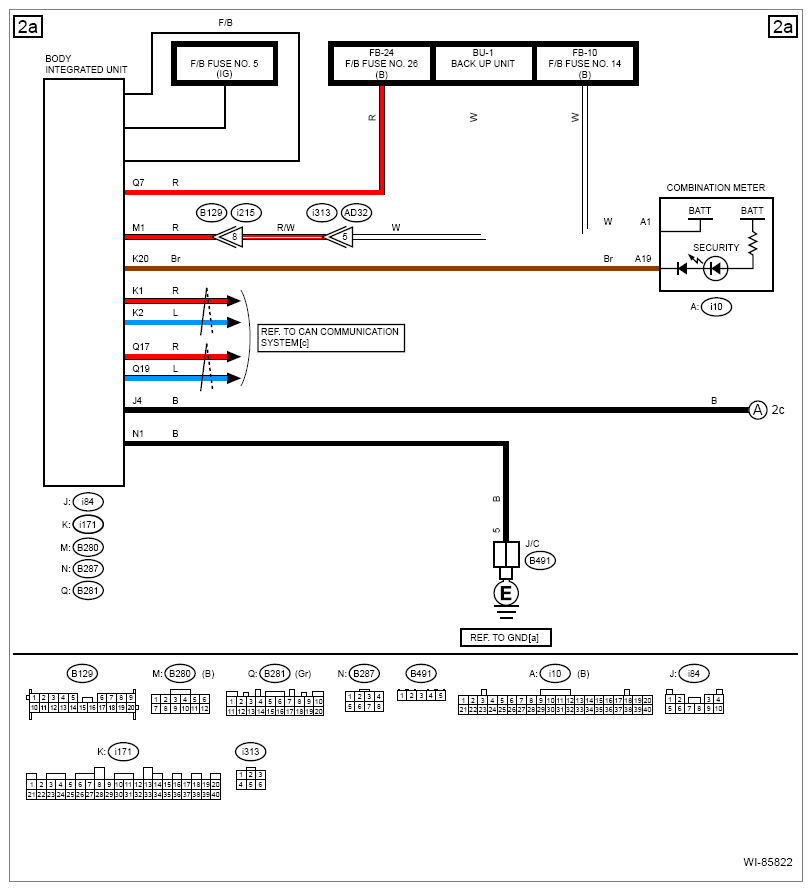

G13607765Courtesy of SUBARU OF AMERICA, INC.

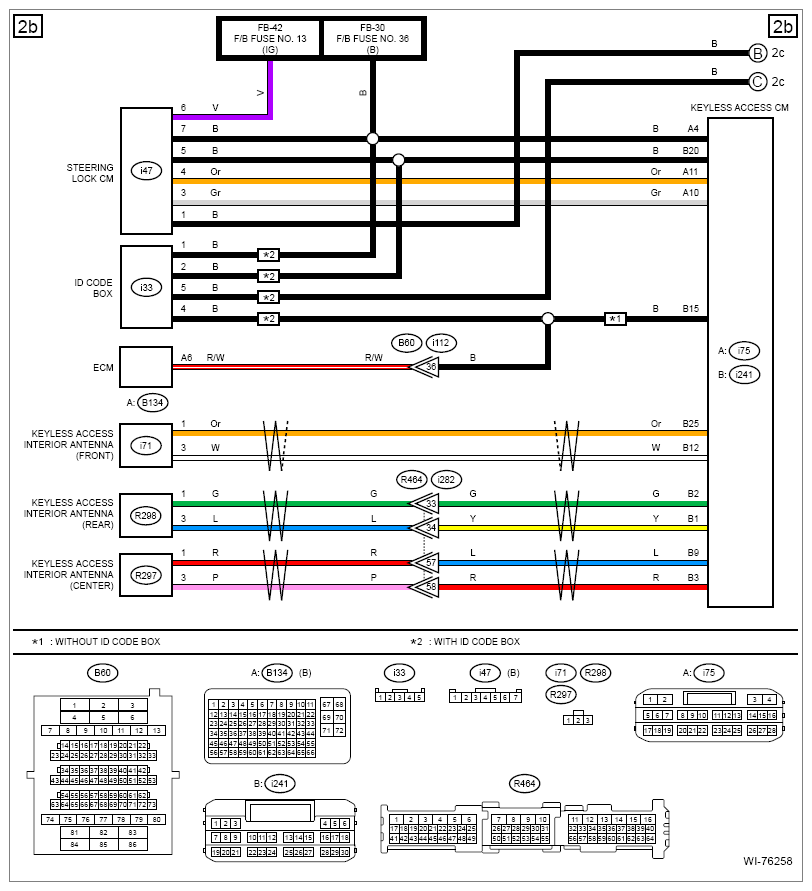

G13607766Courtesy of SUBARU OF AMERICA, INC.

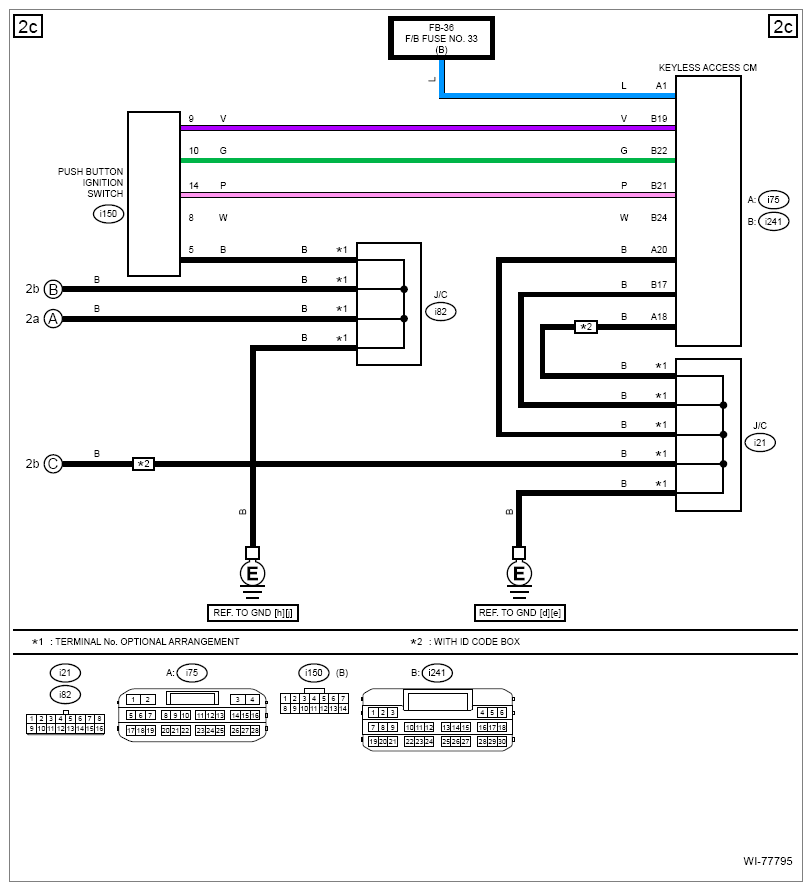

G13607767Courtesy of SUBARU OF AMERICA, INC.
