CVT Model

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

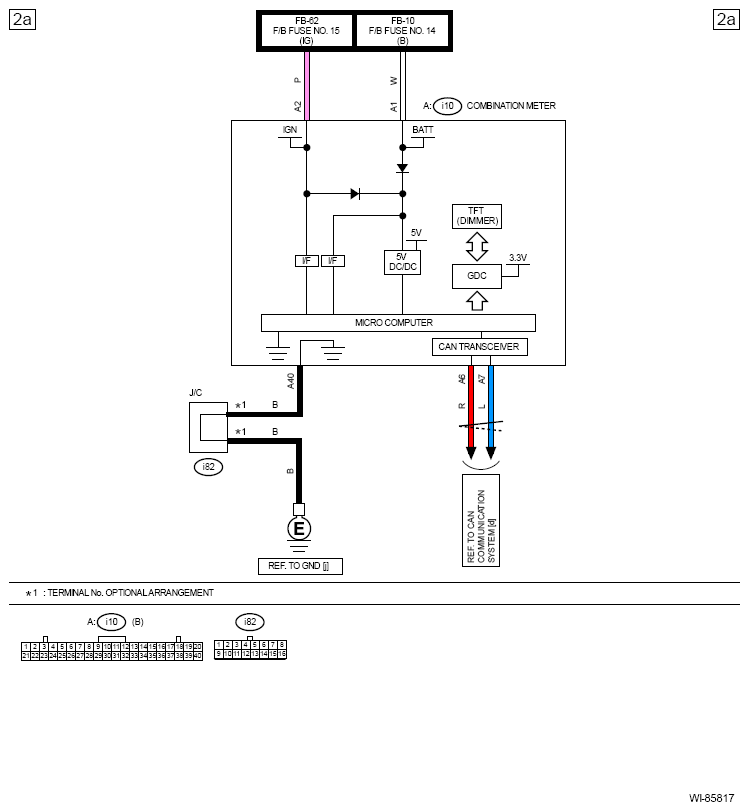

G13607756Courtesy of SUBARU OF AMERICA, INC.

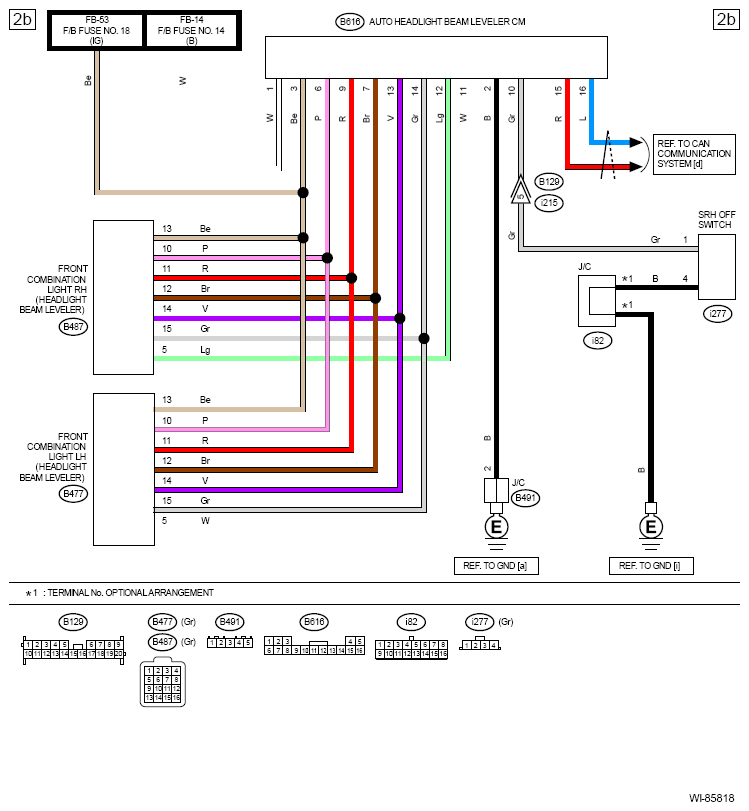

G13607757Courtesy of SUBARU OF AMERICA, INC.
