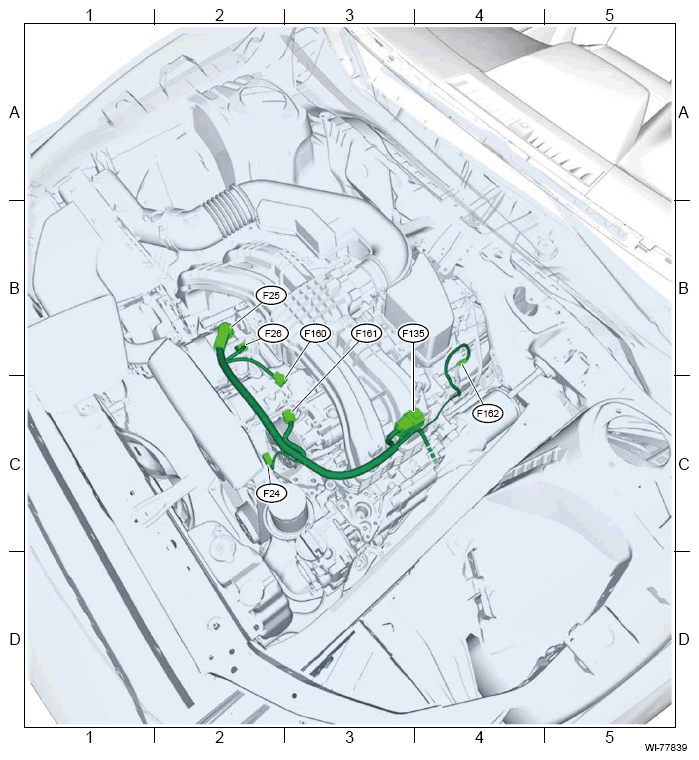

Front Wiring Harness: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| F24 |
1 |
Gr |
C-2 |
|
Magnet clutch |
| F25 |
- |
V |
B-2 |
|
Generator terminal B |
| F26 |
1 |
B |
B-2 |
|
Generator |
| F135 |
11 |
Gr |
C-3 |
E127 |
Engine wiring harness |
| F160 |
2 |
Gr |
C-2 |
|
Compressor solenoid |
| F161 |
3 |
Gr |
C-3 |
|
Flow sensor |
| F162 |
1 |
B |
B-4 |
|
Starter motor |
| *: White or natural color |
