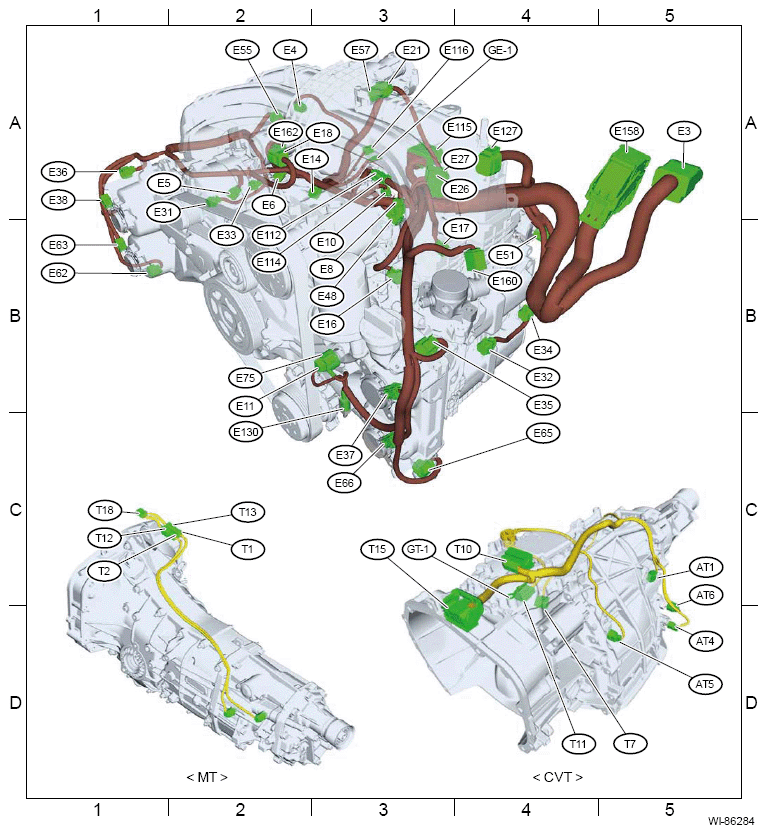

Engine Wiring Harness and Transmission Cord: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AT1 |
3 |
B |
C-5 |
|
Primary speed sensor (CVT model) |
| AT4 |
3 |
Gr |
D-5 |
|
Secondary speed sensor (CVT model) |
| AT5 |
3 |
Gr |
D-5 |
|
Turbine speed sensor (CVT model) |
| AT6 |
3 |
B |
C-5 |
|
Secondary pressure sensor (CVT model) |
| E3 |
76 |
|
A-5 |
B139 |
Bulkhead wiring harness |
| E4 |
2 |
B |
A-2 |
|
Purge control solenoid valve |
| E5 |
2 |
Gr |
A-2 |
|
Fuel injector No. 1 |
| E6 |
2 |
Gr |
A-2 |
|
Fuel injector No. 3 |
| E8 |
2 |
B |
A-3 |
|
Engine coolant temperature sensor |
| E10 |
3 |
B |
A-3 |
|
Crankshaft position sensor |
| E11 |
1 |
|
B-3 |
|
Oil pressure switch |
| E14 |
2 |
B |
A-3 |
|
Knock sensor 1 |
| E16 |
2 |
Gr |
B-3 |
|
Fuel injector No. 2 |
| E17 |
2 |
Gr |
B-3 |
|
Fuel injector No. 4 |
| E18 |
6 |
Gr |
A-2 |
|
EGR control valve |
| E21 |
3 |
B |
A-3 |
|
Manifold absolute pressure sensor |
| E26 |
12 |
B |
A-3 |
|
J/C |
| E27 |
24 |
B |
A-3 |
|
| E31 |
3 |
B |
A-2 |
|
Ignition coil No. 1 |
| E32 |
3 |
B |
B-4 |
|
Ignition coil No. 2 |
| E33 |
3 |
B |
A-2 |
|
Ignition coil No. 3 |
| E34 |
3 |
B |
B-4 |
|
Ignition coil No. 4 |
| E35 |
3 |
Gr |
B-3 |
|
Intake camshaft position sensor LH |
| E36 |
3 |
Gr |
A-1 |
|
Intake camshaft position sensor RH |
| E37 |
2 |
B |
B-3 |
|
Intake oil control solenoid LH |
| E38 |
2 |
B |
A-1 |
|
Intake oil control solenoid RH |
| E48 |
2 |
B |
A-3 |
|
Knock sensor 2 |
| E51 |
5 |
Gr |
B-4 |
|
Tumble generator valve actuator LH |
| E55 |
5 |
Gr |
A-2 |
|
Tumble generator valve actuator RH |
| E57 |
6 |
B |
A-3 |
|
Electronic throttle control |
| E62 |
3 |
Gr |
B-1 |
|
Exhaust camshaft position sensor RH |
| E63 |
2 |
B |
B-1 |
|
Exhaust oil control solenoid RH |
| E65 |
3 |
Gr |
C-3 |
|
Exhaust camshaft position sensor LH |
| E66 |
2 |
B |
C-3 |
|
Exhaust oil control solenoid LH |
| E75 |
2 |
B |
B-3 |
|
Engine oil temperature sensor |
| E112 |
2 |
Gr |
A-3 |
E114 |
Engine wiring harness |
| E114 |
2 |
Gr |
A-3 |
E112 |
| E115 |
30 |
B |
A-3 |
T15 |
Transmission cord (CVT model) |
| E116 |
8 |
Gr |
A-3 |
T18 |
Transmission cord (MT model) |
| E127 |
11 |
Gr |
A-4 |
F135 |
Front wiring harness |
| E130 |
1 |
|
B-3 |
|
Oil level switch |
| E158 |
114 |
B |
A-5 |
|
ECM |
| E160 |
2 |
B |
B-4 |
|
High-pressure fuel pump |
| E162 |
4 |
B |
A-2 |
|
Fuel pressure sensor |
| T1 |
2 |
Gr |
C-2 |
T13 |
Transmission cord (MT model) |
| T2 |
2 |
Br |
C-2 |
T12 |
| T7 |
9 |
B |
C-4 |
|
Inhibitor switch (CVT model) |
| T10 |
48 |
B |
C-4 |
|
TCM (CVT model) |
| T11 |
10 |
|
C-4 |
T31 |
Control valve body (CVT model) |
| T12 |
2 |
Br |
C-1 |
T2 |
Neutral position switch (MT model) |
| T13 |
2 |
Gr |
C-2 |
T1 |
Back-up light switch (MT model) |
| T15 |
30 |
B |
C-3 |
E115 |
Engine wiring harness (CVT model) |
| T18 |
8 |
Gr |
C-1 |
E116 |
Engine wiring harness (MT model) |
| GE-1 |
- |
- |
A-3 |
|
- |
| GT-1 |
- |
- |
C-4 |
|
- |
