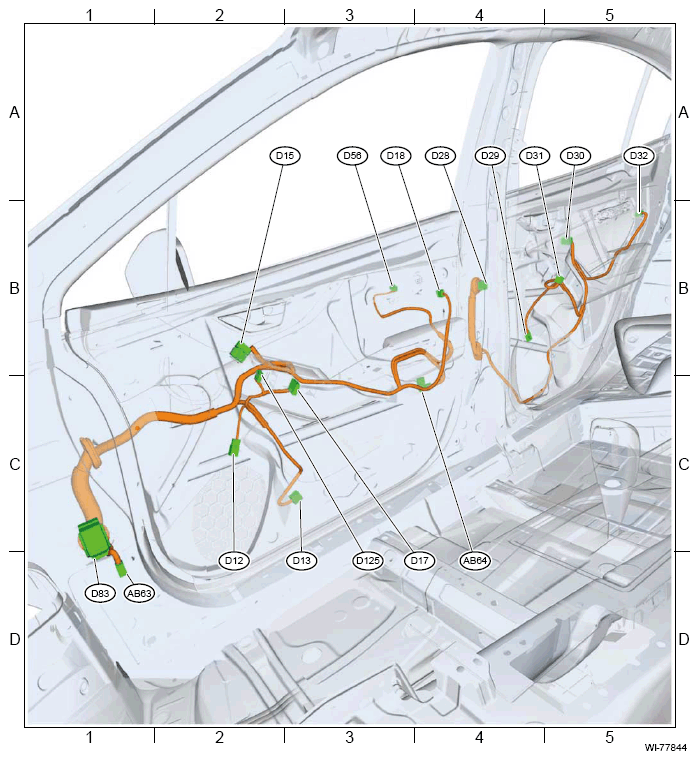

Door Cord RH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB63 |
2 |
Y |
D-1 |
R124 |
Rear wiring harness RH |
| AB64 |
2 |
Y |
C-4 |
|
Airbag door sensor RH |
| D12 |
2 |
|
C-2 |
|
Front door speaker RH |
| D13 |
8 |
B |
C-3 |
|
Front power window motor RH |
| D15 |
13 |
|
B-2 |
|
Outer mirror ASSY RH |
| D17 |
8 |
|
C-3 |
|
Front power window sub-switch |
| D18 |
10 |
|
B-4 |
|
Front door lock actuator RH |
| D28 |
12 |
|
B-4 |
R10 |
Rear wiring harness RH |
| D29 |
2 |
|
B-4 |
|
Rear door speaker RH |
| D30 |
2 |
B |
B-5 |
|
Rear power window motor RH |
| D31 |
5 |
|
B-5 |
|
Rear power window switch RH |
| D32 |
10 |
|
B-5 |
|
Rear door lock actuator RH |
| D56 |
6 |
|
B-3 |
|
Outer handle RH |
| D83 |
46 |
|
C-1 |
i76 |
Instrument panel wiring harness |
| D125 |
8 |
|
B-2 |
|
Passenger's door lock switch |
