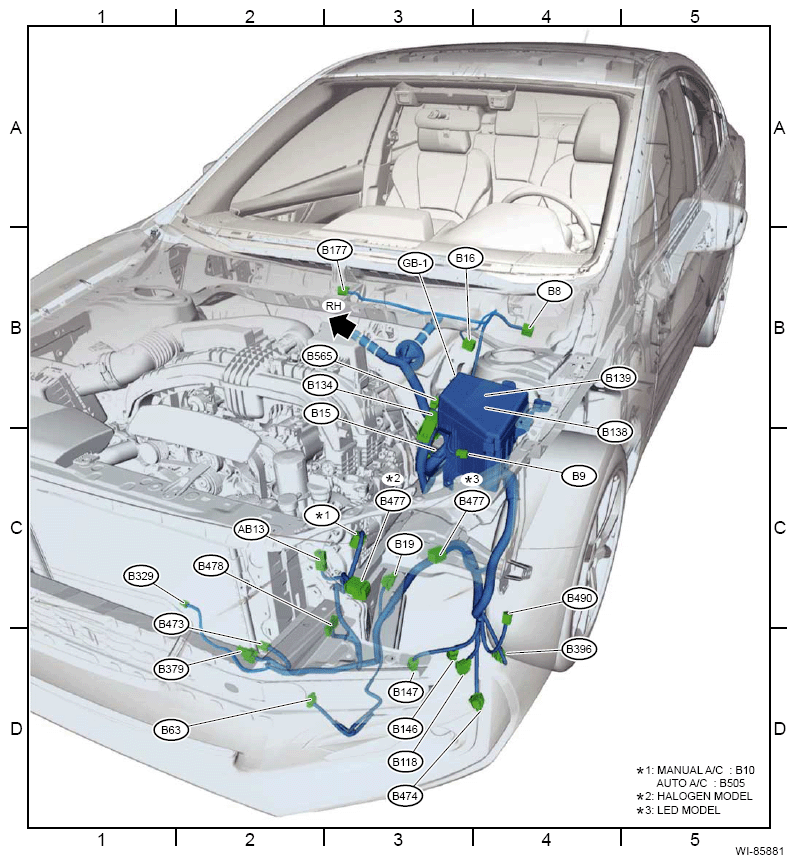

Bulkhead Wiring Harness (In Engine Compartment) LH: Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| AB13 |
2 |
Y |
C-2 |
|
Front sub sensor LH |
| B8 |
5 |
Gr |
B-4 |
|
Front wiper motor |
| B9 |
3 |
B |
C-3 |
|
Battery sensor |
| B10 |
4 |
B |
C-3 |
|
Pressure switch |
| B15 |
2 |
Gr |
C-3 |
|
Front ABS wheel speed sensor LH |
| B16 |
2 |
Gr |
B-3 |
|
Brake fluid level switch |
| B19 |
4 |
B |
C-3 |
|
Transmission cord |
| B63 |
4 |
B |
D-2 |
|
Active grille shutter |
| B118 |
2 |
|
D-3 |
|
Daytime running light LH |
| B134 |
72 |
B |
B-3 |
|
ECM |
| B138 |
8 |
B |
B-4 |
|
J/C |
| B139 |
76 |
|
B-4 |
E3 |
Engine wiring harness |
| B146 |
2 |
Gr |
D-3 |
|
Front washer motor |
| B147 |
2 |
B |
D-3 |
|
Rear washer motor |
| B177 |
2 |
Gr |
B-3 |
|
Wiper deicer |
| B329 |
3 |
B |
C-2 |
|
Hood switch |
| B379 |
4 |
Gr |
D-2 |
|
Front oxygen (A/F) sensor |
| B396 |
2 |
B |
D-4 |
|
Washer fluid level sensor |
| B473 |
2 |
Gr |
D-2 |
|
Main fan motor |
| B474 |
2 |
B |
D-4 |
|
Front fog light LH |
| B477 |
8 |
Gr |
C-3 |
|
Front combination light LH (halogen model) |
| 16 |
Gr |
C-3 |
|
Front combination light LH (LED model) |
| B478 |
5 |
|
C-3 |
|
J/C |
| B490 |
2 |
B |
C-4 |
|
Keyless buzzer |
| B505 |
3 |
Gr |
C-3 |
|
Pressure sensor |
| B565 |
3 |
Gr |
B-3 |
|
Brake booster pressure sensor |
| GB-1 |
- |
- |
B-3 |
|
- |
