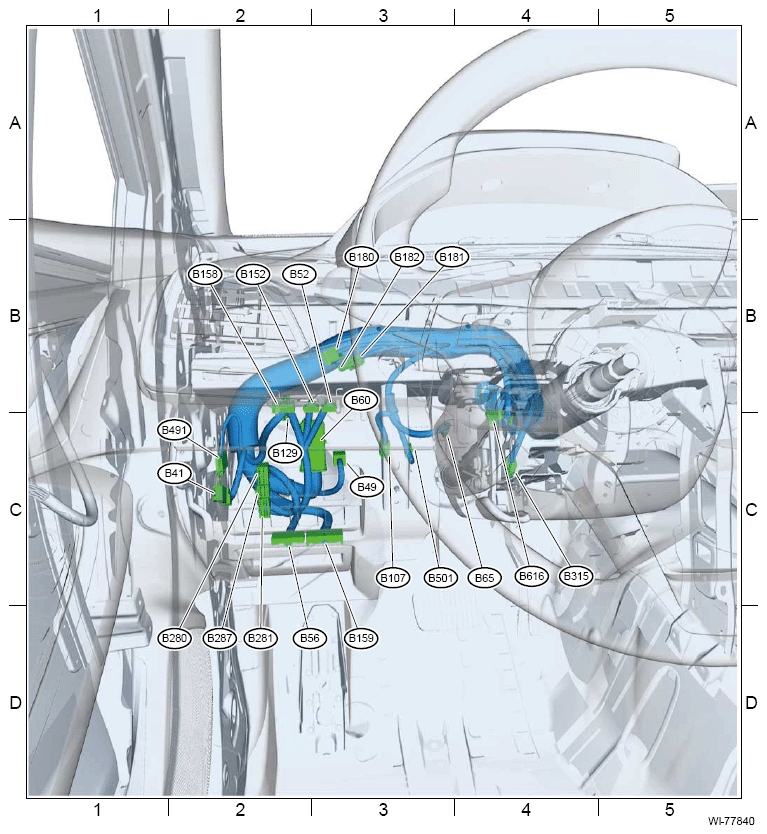

Bulkhead Wiring Harness (In Compartment): Location
WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of SUBARU OF AMERICA, INC.
|
| Connector |
Connecting to |
| No. |
Pole |
Color |
Area |
No. |
Description |
| B41 |
2 |
|
C-2 |
|
Power window circuit breaker |
| B49 |
4 |
Y |
C-3 |
i115 |
Instrument panel wiring harness |
| B52 |
4 |
|
B-3 |
|
F/B |
| B56 |
8 |
Br |
|
C-2 |
| B60 |
86 |
|
C-3 |
i112 |
Instrument panel wiring harness |
| B65 |
5 |
|
C-3 |
|
Stop light & brake switch |
| B107 |
2 |
L |
C-3 |
|
Clutch switch |
| B129 |
20 |
|
C-2 |
i215 |
Instrument panel wiring harness |
| B152 |
4 |
B |
B-2 |
|
F/B |
| B158 |
20 |
|
B-2 |
|
| B159 |
4 |
|
C-3 |
|
| B180 |
4 |
|
B-3 |
|
Remote engine start CM connector |
| B181 |
2 |
|
B-3 |
B182 |
Short connector |
| B182 |
2 |
|
B-3 |
B181 |
| B280 |
12 |
B |
C-2 |
|
Body integrated unit |
| B281 |
20 |
Gr |
C-2 |
|
| B287 |
8 |
|
C-2 |
|
| B315 |
6 |
B |
C-4 |
|
Accelerator pedal position sensor |
| B491 |
5 |
|
C-2 |
|
J/C |
| B501 |
10 |
Gr |
C-3 |
|
Clutch start switch |
| B616 |
24 |
|
C-4 |
|
Auto headlight beam leveler CM |
