Auto A/C

WARNING: This page is about a different car, the 2020 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

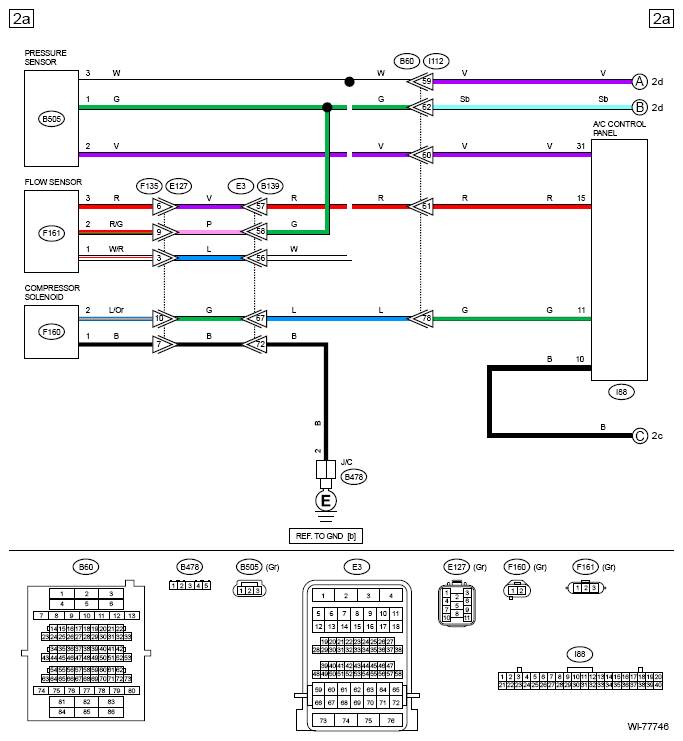

G13235845Courtesy of SUBARU OF AMERICA, INC.

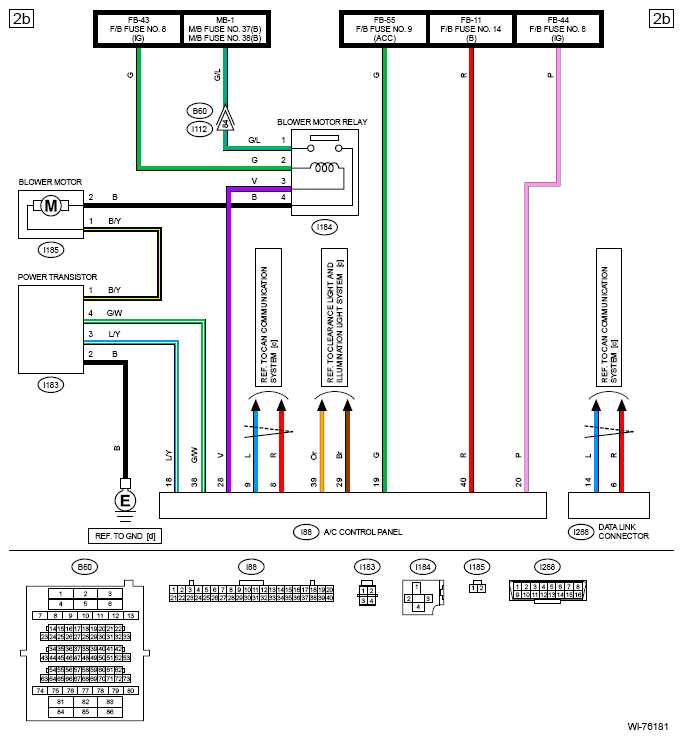

G13235846Courtesy of SUBARU OF AMERICA, INC.

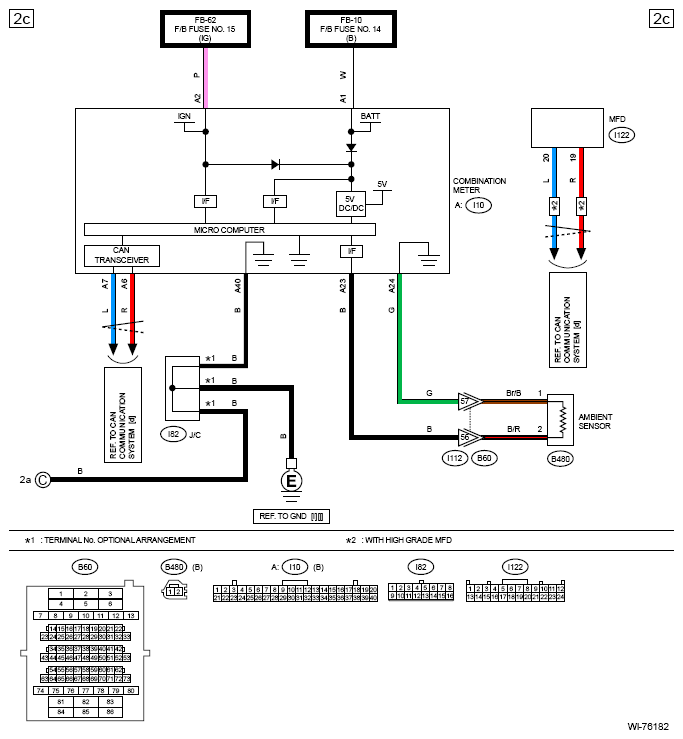

G13235847Courtesy of SUBARU OF AMERICA, INC.

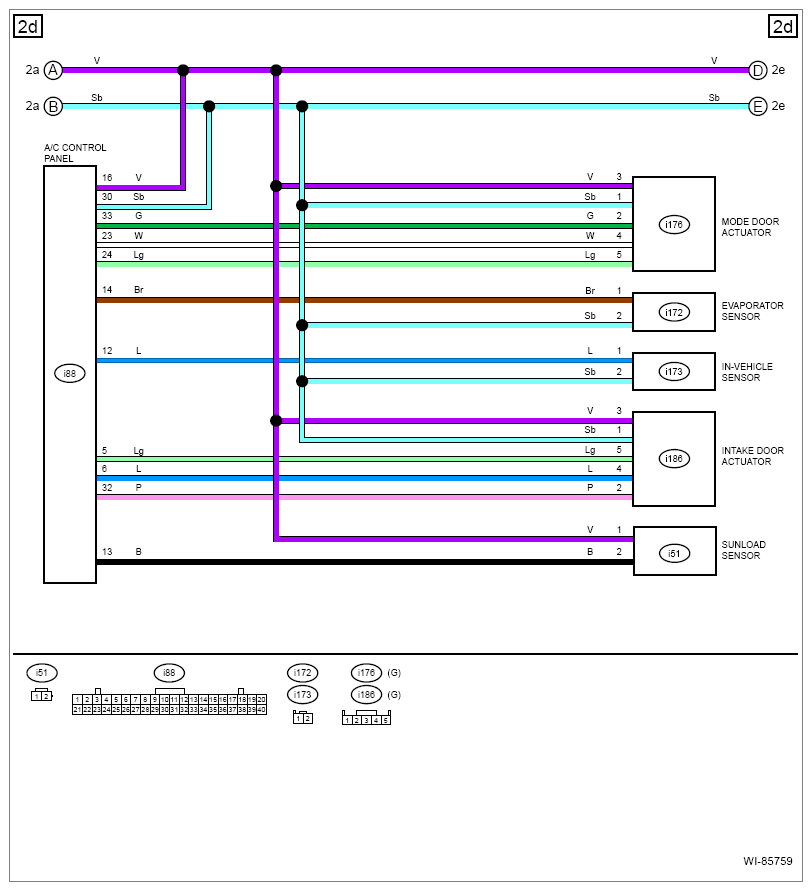

G13607641Courtesy of SUBARU OF AMERICA, INC.

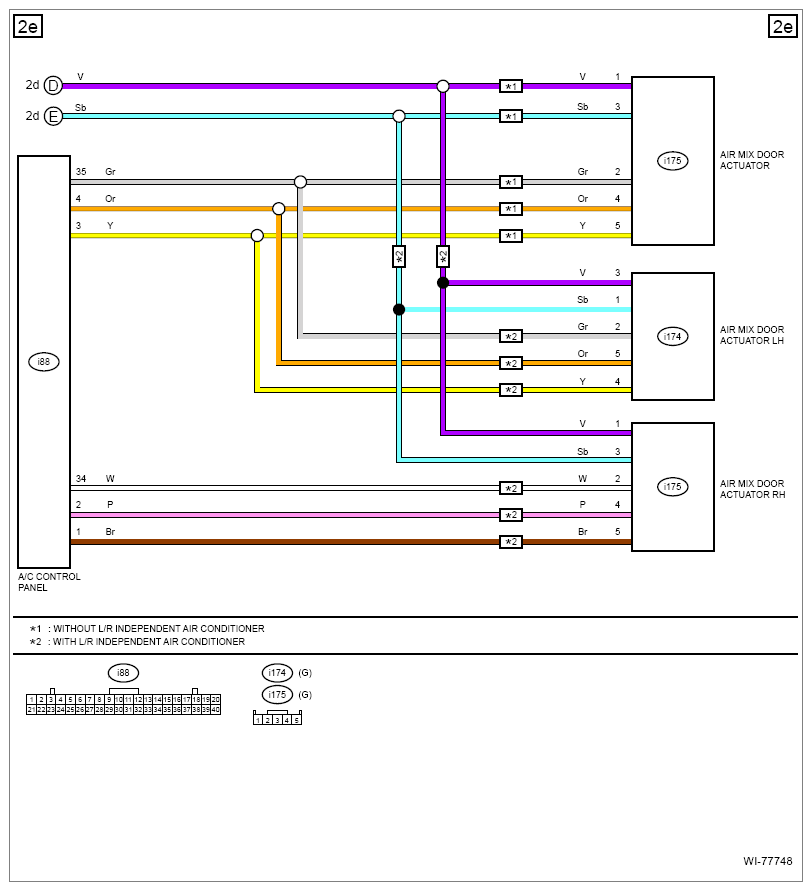

G13607642Courtesy of SUBARU OF AMERICA, INC.
