OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay Locations (Except HEV)
>>
Reverse Automatic Braking
>>
Wiring Diagram

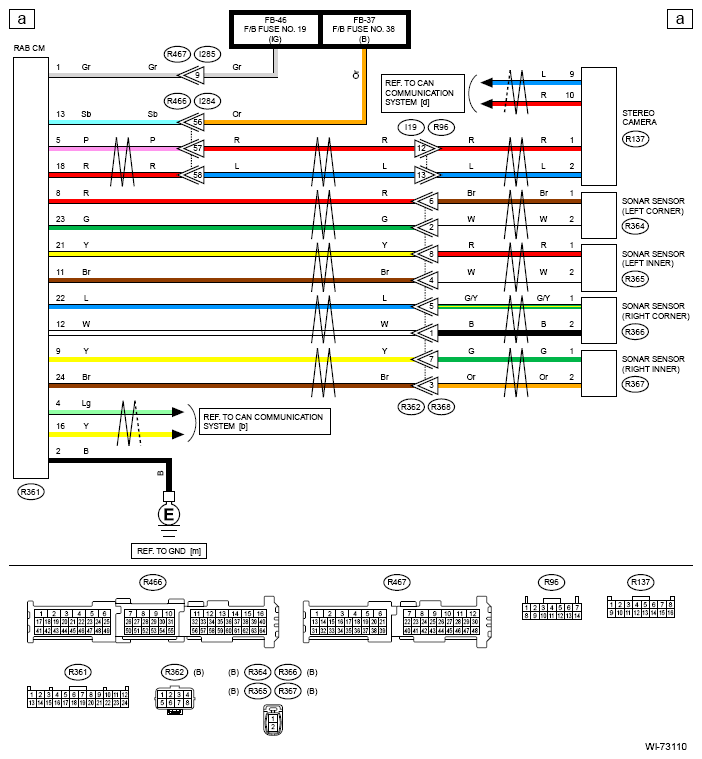

Reverse Automatic Braking: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
